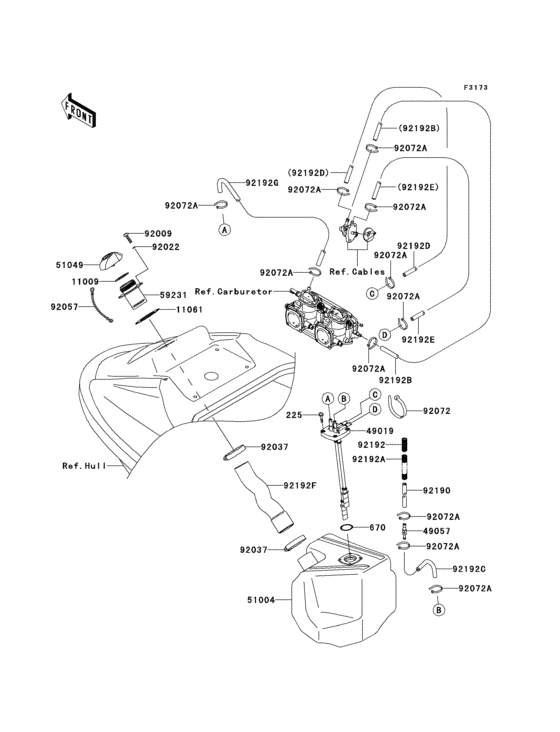

Fuel tank Diagram Kawasaki JET SKI 800 SX-R JS800-A
- Engine Capacity
- 800
- Year
- 2011
- Commercial Name
- JS800-A
- Sales region
- Canada
- Colour
- Gelcoat Black (650)
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
225
|
225
225R0520 SCREW-PAN-WSP-CROS,5X |
225R0520 |
from US $1.27 |
||
|
670
|
670
670B3036 0 RING,36MM |
670B3036 |
from US $1.45 |
||
|
11009
|
11009
11009-3020 GASKET,FUEL TANK CAP |
11009-3020 |
from US $10.14 |
||
|
11061
|
11061
11061-3701 GASKET |
11061-3701 |
from US $9.98 |
||
|
49019
|
49019
49019-3718 FILTER-FUEL |
49019-3718 |
from US $60.77 |
||
| replacement | |||||
|
49019
|
49019
49019-0036 Filter-Fuel |
49019-0036 |
US $80.19 |
||
|
49057
|
49057
49057-3707 VALVE-RELIEF |
49057-3707 |
from US $40.39 |
||
| replacement | |||||
|
49057
|
49057
49057-0002 VALVE-RELIEF |
49057-0002 |
from US $40.39 |
||
|
51004
|
51004
51004-3750 TANK-FUEL |
51004-3750 |
from US $229.27 |
||
|
51049
|
51049
51049-3725 CAP-TANK,FUEL |
51049-3725 |
US $29.77 |
||
| replacement | |||||
|
51049
|
51049
51049-0712 CAP-TANK,FUEL |
51049-0712 |
from US $24.46 |
||
|
59231
|
59231
59231-3734 FILLER,FUEL TANK |
59231-3734 |
from US $9.82 |
||
|
92009
|
92009
92009-3849 SCREW,TAPPING,4X16 |
92009-3849 |
from US $0.95 |
||
|
92022
|
92022
92022-563 WASHER |
92022-563 |
from US $1.56 |
||
|
92037
|
92037
92037-3009 HOSE CLAMP |
92037-3009 |
from US $4.69 |
||
|
92057
|
92057
92057-3704 CHAIN,COVER |
92057-3704 |
from US $15.52 |
||
|
92072
|
92072
92072-0105 BAND,L=188.85 |
92072-0105 |
from US $1.43 |
||
|
92072A
|
92072A
92072-3882 BAND,L-100.08 |
92072-3882 |
from US $1.90 |
||
|
92190
|
92190
92190-3846 TUBE,5.8X10.8X800,WHI |
92190-3846 |
from US $19.66 |
||
| replacement | |||||
|
92190
|
92190
92191-3720 TUBE,5.8X10.8X800,WHI |
92191-3720 |
from US $23.29 |
||
|
92192
|
92192
92192-3733 TUBE,CORRUGATED,L=40 |
92192-3733 |
from US $0.38 |
||
|
92192A
|
92192A
92192-3734 TUBE,CORRUGATED,L=200 |
92192-3734 |
from US $1.58 |
||
|
92192B
|
92192B
92192-3834 TUBE,5.8X10.8X500 |
92192-3834 |
from US $31.42 |
||
|
92192C
|
92192C
92192-3835 TUBE,AIR VENT |
92192-3835 |
from US $23.49 |
||
|
92192D
|
92192D
92192-3837 TUBE,RES |
92192-3837 |
from US $51.32 |
||
|
92192E
|
92192E
92192-3838 TUBE,ON |
92192-3838 |
from US $51.32 |
||
|
92192F
|
92192F
92192-3839 TUBE,FUEL TANK-FILLER |
92192-3839 |
from US $71.64 |
||
|
92192G
|
92192G
92192-3859 TUBE,RETURN |
92192-3859 |
from US $49.45 |
||
