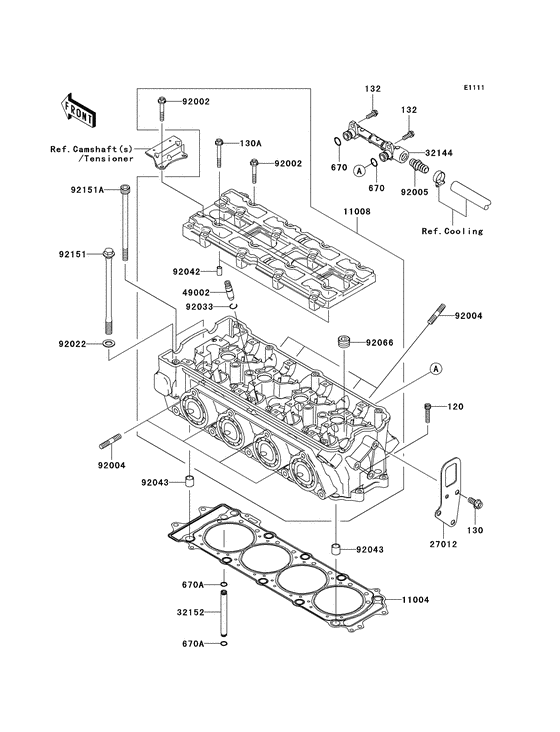

Cylinder head Diagram Kawasaki JET SKI STX-12 JT1200-D
- Engine Capacity
- 1200
- Year
- 2006
- Commercial Name
- JT1200-D
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Model
- JT1200-D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120Z0630 BOLT-SOCKETBolt-socket,6x30; |
120Z0630 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CD0630 BOLT-SOCKETBolt-socket,6x30; |
120CD0630 |
from US $1.27 |
||
|
130
|
130
130Y0818 BOLT-FLANGEDBolt-flanged,8x18; |
130Y0818 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BD0818 BOLT-FLANGEDBolt-flanged,8x18; |
130BD0818 |
from US $1.27 |
||
|
130A
|
130A
130Z0650 BOLT-FLANGEDBolt-flanged,6x50; |
130Z0650 |
from US $1.74 |
||
| replacement | |||||
|
130A
|
130A
130CD0650 BOLT-FLANGEDBolt-flanged,6x50; |
130CD0650 |
from US $1.27 |
||
|
132
|
132
132Y0616
BOLT-FLANGED-SMALL
Bolt-flanged-small,6x16; |
132Y0616 |
— | ||
| replacement | |||||
|
132
|
132
132BD0616 BOLT-FLANGED-SMALLBolt-flanged-small,6x16; |
132BD0616 |
from US $1.11 |
||
|
670
|
670
670B2012 O RING,12MMO ring,12mm; |
670B2012 |
from US $2.84 |
||
|
670A
|
670A
670D1507 O-RINGO ring,7mm; |
670D1507 |
from US $2.23 |
||
|
11004
|
11004
11004-3721 GASKET-HEAD |
11004-3721 |
from US $90.96 |
||
|
11008
|
11008
11008-3705 HEAD-COMP-CYLINDER |
11008-3705 |
from US $2,628.12 |
||
|
27012
|
27012
27012-3856 HOOK,ENGINE,RRHook,engine,rr; |
27012-3856 |
from US $14.57 |
||
|
32144
|
32144
32144-3707 PIPE-ASSY |
32144-3707 |
US $139.86 |
||
| replacement | |||||
|
32144
|
32144
32144-3709 PIPE-ASSY |
32144-3709 |
from US $97.54 |
||
|
32152
|
32152
32152-1544 PIPE,OILPipe,oil; |
32152-1544 |
from US $9.03 |
||
|
49002
|
49002
49002-1140 GUIDE-VALVE |
49002-1140 |
from US $22.44 |
||
|
92002
|
92002
92002-1756 BOLT,6X40Bolt,6x40; |
92002-1756 |
from US $2.85 |
||
|
92004
|
92004
92004-3743 STUD,8X30Stud,8x30; |
92004-3743 |
from US $2.69 |
||
|
92005
|
92005
92005-3714 FITTING |
92005-3714 |
from US $14.10 |
||
|
92022
|
92022
92022-1720 WASHERWasher,11.5x20.5x1.6; |
92022-1720 |
from US $2.69 |
||
|
92033
|
92033
92033-1247 RING-SNAP |
92033-1247 |
from US $2.38 |
||
|
92042
|
92042
92042-007 PIN-DOWELPin,dowel,6.3x8x14; |
92042-007 |
from US $4.44 |
||
|
92043
|
92043
92043-1593 PIN,14X14Pin,14x14; |
92043-1593 |
from US $3.96 |
||
|
92066
|
92066
92066-0002 PLUG,PT1/2X12.5Plug,pt1/2x12.5; |
92066-0002 |
from US $5.54 |
||
|
92151
|
92151
92151-1513 BOLT,11X168Bolt,11x168; |
92151-1513 |
from US $10.93 |
||
|
92151A
|
92151A
92151-1804 BOLT,SOCKET,7X120Bolt,socket,7x120; |
92151-1804 |
from US $6.97 |
||
