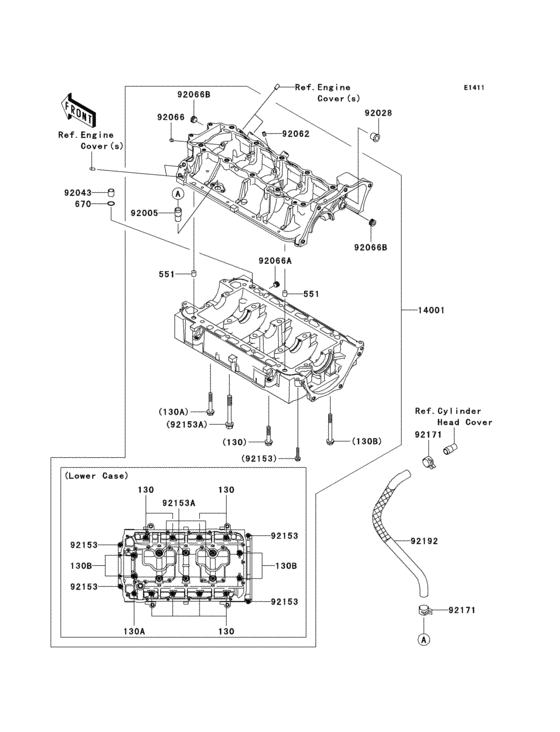

Crankcase Diagram Kawasaki JET SKI ULTRA 260LX JT1500-F
- Engine Capacity
- 1500
- Year
- 2009
- Commercial Name
- JT1500-F
- Sales region
- Canada
- Colour
- Jet White (8C)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CD0845 BOLT-FLANGED |
130CD0845 |
from US $1.43 |
||
|
130A
|
130A
130CD0855 BOLT-FLANGED |
130CD0855 |
from US $1.43 |
||
|
130B
|
130B
130CD0885 BOLT-FLANGED |
130CD0885 |
from US $1.74 |
||
|
551
|
551
551R1012 PIN-DOWEL |
551R1012 |
from US $4.75 |
||
|
670
|
670
670D2014 0 RING,14MM |
670D2014 |
from US $3.90 |
||
|
14001
|
14001
14001-3749 SET-CRANKCASE |
14001-3749 |
from US $2,279.64 |
||
|
92005
|
92005
92005-3741 FITTING |
92005-3741 |
from US $10.93 |
||
|
92028
|
92028
92028-3718 BUSHING |
92028-3718 |
from US $6.97 |
||
|
92043
|
92043
92043-1279 PIN,11.5X14X14 |
92043-1279 |
from US $3.17 |
||
|
92062
|
92062
92062-0004 NOZZLE |
92062-0004 |
from US $2.69 |
||
|
92066
|
92066
92066-1012 PLUG |
92066-1012 |
from US $3.96 |
||
|
92066A
|
92066A
92066-3778 PLUG |
92066-3778 |
from US $6.65 |
||
|
92066B
|
92066B
92066-3782 PLUG |
92066-3782 |
from US $6.65 |
||
|
92153
|
92153
92153-3707 BOLT,6X30 |
92153-3707 |
from US $1.43 |
||
|
92153A
|
92153A
92153-3711 BOLT,10X85 |
92153-3711 |
from US $8.08 |
||
|
92171
|
92171
92171-3710 CLAMP |
92171-3710 |
from US $1.58 |
||
| replacement | |||||
|
92171
|
92171
92173-1039 CLAMP |
92173-1039 |
from US $1.43 |
||
|
92192
|
92192
92192-3829 TUBE,HEAD-CRANKCASE |
92192-3829 |
from US $21.99 |
||
