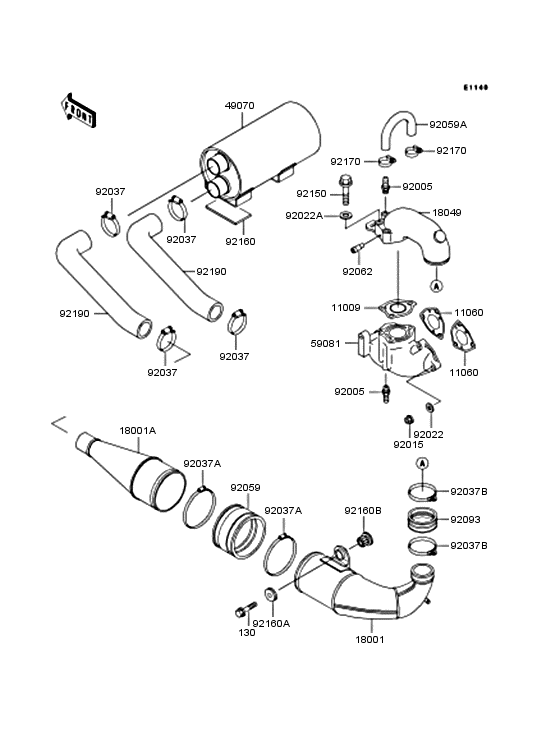

Muffler Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1995
- Commercial Name
- JF650-A
- Sales region
- Japan
- Colour
- Jet White (8C)
- Frame
- JF650A 610351 -
- Engine
- JF650ZE 000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130Z0845 BOLT-FLANGEDボルト(ツバツキ) |
130Z0845 |
from US $1.90 |
||
| replacement | |||||
|
130
|
130
130CD0845 BOLT-FLANGEDボルト(ツバツキ) |
130CD0845 |
from US $1.43 |
||
|
11009
|
11009
11009-3752 GASKET,EXHAUST PIPEガスケツト，エキゾ-スト パイプ |
11009-3752 |
US $23.19 |
||
|
11060
|
11060
11060-3721 GASKET,EXHAUST MANIFOガスケツト，エキゾースト マニホールド |
11060-3721 |
from US $16.20 |
||
| replacement | |||||
|
11060
|
11060
11060-3759 GASKET,EXHAUST MANIFOガスケツト，エキゾースト マニホールド |
11060-3759 |
from US $17.07 |
||
|
18001
|
18001
18001-3720 MUFFLERマフラ |
18001-3720 |
from US $385.22 |
||
|
18001A
|
18001A
18001-3753 MUFFLERマフラ |
18001-3753 |
from US $141.89 |
||
|
18049
|
18049
18049-3742 PIPE-EXHAUSTパイプ(エキゾ-スト) |
18049-3742 |
from US $185.09 |
||
|
49070
|
49070
49070-3719 MUFFLER-CMP,WATER BOXマフラコンプ |
49070-3719 |
from US $103.07 |
||
|
59081
|
59081
59081-3706 MANIFOLD-EXHAUSTマニホ-ルド(エキゾ-スト) |
59081-3706 |
from US $305.33 |
||
|
92005
|
92005
92005-3712 FITTING,HOSEフイテイング，ホ-ス |
92005-3712 |
from US $8.71 |
||
|
92015
|
92015
92015-1371 NUT,CAP,8MMナツト，キヤツプ，8MM; オプシヨン |
92015-1371 |
from US $3.73 |
||
|
92022
|
92022
92022-1964 WASHERワツシヤ，8.2X18X1.5 |
92022-1964 |
from US $3.01 |
||
|
92022A
|
92022A
92022-3742 WASHERワツシヤ，10.2X20X1.5; オプシヨン |
92022-3742 |
from US $3.01 |
||
|
92037
|
92037
92037-3009 HOSE CLAMPクランプ |
92037-3009 |
from US $4.69 |
||
|
92037A
|
92037A
92037-3733 CLAMP,MAX 120,7MMクランプ; オプシヨン |
92037-3733 |
from US $9.94 |
||
|
92037B
|
92037B
92037-3740 CLAMPクランプ，68MM |
92037-3740 |
from US $10.14 |
||
|
92059
|
92059
92059-3767 TUBE,MUFFLER CONNECTIチユ-ブ，マフラ コネクテイング |
92059-3767 |
from US $40.39 |
||
|
92059A
|
92059A
92059-3816 TUBEチユ-ブ |
92059-3816 |
from US $8.96 |
||
|
92062
|
92062
92062-3705 NOZZLEノズル |
92062-3705 |
from US $7.13 |
||
|
92093
|
92093
92093-3705 SEALシ-ル |
92093-3705 |
US $16 |
||
| replacement | |||||
|
92093
|
92093
92093-0578 SEALシ-ル |
92093-0578 |
from US $12.90 |
||
|
92150
|
92150
92150-3819 BOLT,10X50ボルト，10X50 |
92150-3819 |
US $9.66 |
||
|
92160
|
92160
92160-1266 DAMPER,SEAT COVERダンパ |
92160-1266 |
from US $4.75 |
||
|
92160A
|
92160A
92160-3701 DAMPERダンパ，マフラ |
92160-3701 |
from US $6.19 |
||
|
92160B
|
92160B
92160-3702 DAMPERダンパ，マフラ マウント |
92160-3702 |
from US $10.13 |
||
|
92170
|
92170
92170-3718 Clampクランプ |
92170-3718 |
US $12.40 |
||
| replacement | |||||
|
92170
|
92170
92173-1401 CLAMPクランプ |
92173-1401 |
from US $9.35 |
||
|
92190
|
92190
92190-3911 TUBEチユ-ブ |
92190-3911 |
US $42.64 |
||
| replacement | |||||
|
92190
|
92190
92191-3726
TUBE
チユ-ブ |
92191-3726 |
— | ||
