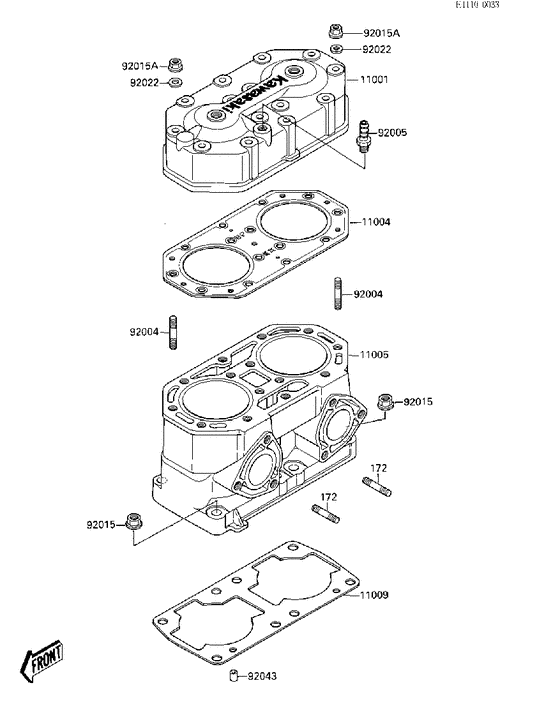

Cylinder head/cylinder Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1988
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11001
|
11001
11001-3702 Head-cylinder |
11001-3702 |
US $263.75 |
||
| replacements | |||||
|
11001
|
11001
11001-3716
HEAD-CYLINDER
|
11001-3716 |
— | ||
|
11001
|
11001
11001-3714 HEAD-CYLINDER |
11001-3714 |
US $320.60 |
||
|
11004
|
11004
11004-3702 Gasket-head |
11004-3702 |
US $28.60 |
||
| replacement | |||||
|
11004
|
11004
11004-3710 GASKET-HEAD |
11004-3710 |
from US $41.59 |
||
|
11005
|
11005
11005-3702 Cylinder-engine |
11005-3702 |
US $932.27 |
||
| replacement | |||||
|
11005
|
11005
11005-3708 CYLINDER-ENGINE |
11005-3708 |
from US $1,079.23 |
||
|
11009
|
11009
11009-3719
GASKET,CYLINDER BASE
Gasket,cylinder base; |
11009-3719 |
— | ||
| replacement | |||||
|
11009
|
11009
11009-3775
GASKET,CYLINDER BASE
Gasket,cylinder base; |
11009-3775 |
— | ||
|
92004
|
92004
92004-3715 STUD,8X43Stud,8x43; |
92004-3715 |
from US $7.92 |
||
|
92005
|
92005
92005-3001 FITTING,HOSEFitting,hose; |
92005-3001 |
US $8.93 |
||
| replacement | |||||
|
92005
|
92005
92005-3712 FITTING,HOSEFitting,hose; |
92005-3712 |
from US $8.71 |
||
|
92015
|
92015
92015-3708 NUT,10MMNut,10mm; |
92015-3708 |
US $4.27 |
||
| replacement | |||||
|
92015
|
92015
92015-1649 NUT,10MMNut,10mm; |
92015-1649 |
from US $3.17 |
||
|
92015A
|
92015A
92015-3709 NUT,8MMNut,8mm; |
92015-3709 |
from US $3.33 |
||
|
92022
|
92022
92022-3743 WASHERWasher,8.2x18x1.5; |
92022-3743 |
from US $3.01 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin,dowel,6.3x8x14; |
92042-007 |
from US $4.44 |
||
|
172
|
172
172R0830 BOLT-STUD |
172R0830 |
from US $3.01 |
||
