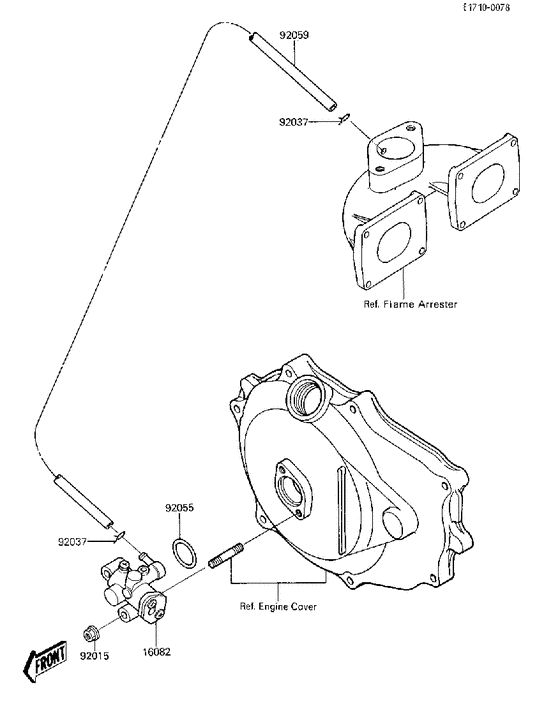

Oil pump Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1988
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16082
|
16082
16082-3708 Pump-assy-oil |
16082-3708 |
from US $235.13 |
||
|
92015
|
92015
92015-3767 NUTNut,6mm; |
92015-3767 |
from US $3.17 |
||
|
92037
|
92037
92037-3722 CLAMP |
92037-3722 |
from US $2.79 |
||
|
92055
|
92055
92055-055 O RINGRing-o,19.5x1.5; |
92055-055 |
from US $3.37 |
||
|
92059
|
92059
92059-3755 TUBETube,3x6x380; |
92059-3755 |
from US $17.71 |
||
| replacement | |||||
|
92059
|
92059
92190-3907 TUBETube,3x6x380; |
92190-3907 |
from US $19.48 |
||
