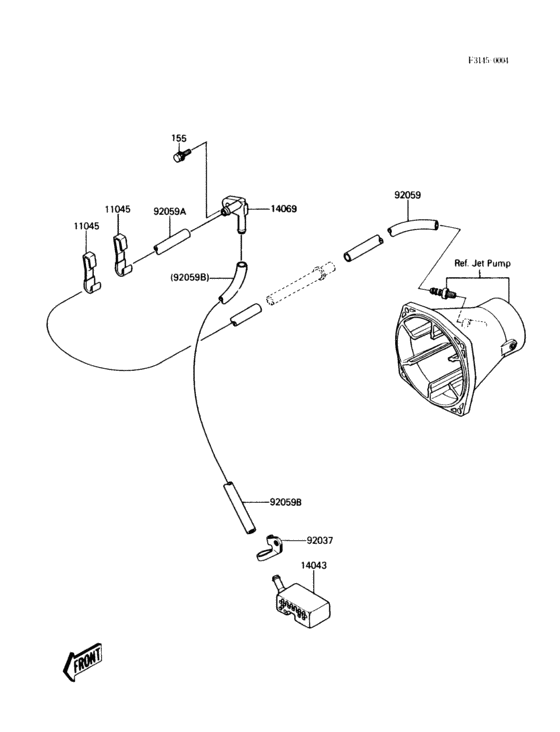

Bilge system Diagram Kawasaki JET SKI X-2 JF650-A
- Engine Capacity
- 650
- Year
- 1988
- Commercial Name
- JF650-A
- Sales region
- U.S.A.
- Colour
- 00
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
155
|
155
155R0825 BOLT-WSP-SMALL,8X25 |
155R0825 |
US $1.43 |
||
|
11045
|
11045
11045-3706 BRACKET |
11045-3706 |
from US $4.32 |
||
|
14043
|
14043
59236504 FILTER,BILGE PUMP |
59236504 |
US $19.48 |
||
|
14069
|
14069
14069-3001 BREATHER |
14069-3001 |
from US $6.80 |
||
|
92037
|
92037
92037-3737 CLAMP,BILGE FILTER |
92037-3737 |
from US $8.73 |
||
|
92059
|
92059
92059-3748 TUBE |
92059-3748 |
US $20.75 |
||
| replacement | |||||
|
92059
|
92059
92059-3763 TUBE |
92059-3763 |
from US $20.75 |
||
|
92059A
|
92059A
92059-3749 TUBE |
92059-3749 |
US $20.75 |
||
| replacement | |||||
|
92059A
|
92059A
92059-3763 TUBE |
92059-3763 |
from US $20.75 |
||
|
92059B
|
92059B
92059-3750 TUBE,BILGE FILTER,9X1 |
92059-3750 |
US $6.07 |
||
