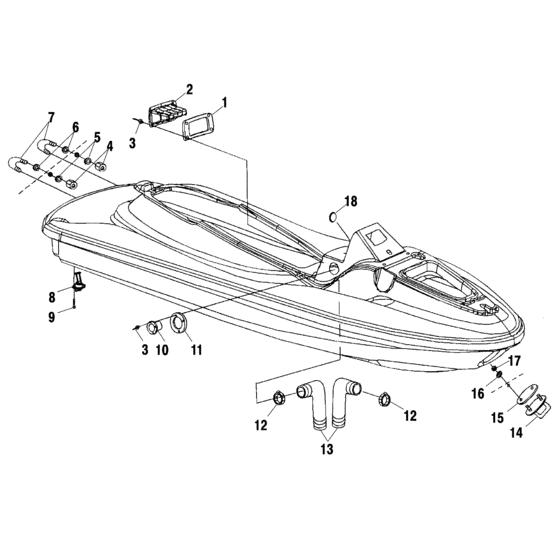

Hull and body (W015098D) Diagram Polaris GENESIS I
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811555 Gasket,recept,seatbase |
5811555 |
US $2.98 |
||
|
2
|
2
5432718
Receptacle, seat base
|
5432718 |
— | ||
|
3
|
3
7661042 Rivet-pop (50)50; |
7661042 |
US $1.89 |
||
|
4
|
4
7546704
Nut, nylok, ss,
10; |
7546704 |
— | ||
|
5
|
5
7555839
Washer, flat, s,s,(10)
10; |
7555839 |
— | ||
|
6
|
6
7555870
Washer,rubber(10)
10; |
7555870 |
— | ||
|
7
|
7
1060126
U-bolt asm,
|
1060126 |
— | ||
|
8
|
8
1060125
Asm,,plug,bilge
|
1060125 |
— | ||
|
9
|
9
7511882
Screw, s,s,
10; |
7511882 |
— | ||
|
10
|
10
5433220
Flange
|
5433220 |
— | ||
|
11
|
11
5411545
Gasket
|
5411545 |
— | ||
|
12
|
12
7080439 Clamp, hose10; |
7080439 |
US $7.68 |
||
|
13
|
13
5433641
Duct,inlet,air,26 inch
|
5433641 |
— | ||
|
14
|
14
2632213
Strap,bow,m8x1,25
|
2632213 |
— | ||
|
15
|
15
5812021
Gasket-strap,bow m8
|
5812021 |
— | ||
|
16
|
16
7555834
Washer, s,s,
10; |
7555834 |
— | ||
|
17
|
17
7546804 Nut,hex,(10), nylok10; |
7546804 |
US $1.89 |
||
|
18
|
18
5411674
Grommet-access,5,0 hole
|
5411674 |
— |
