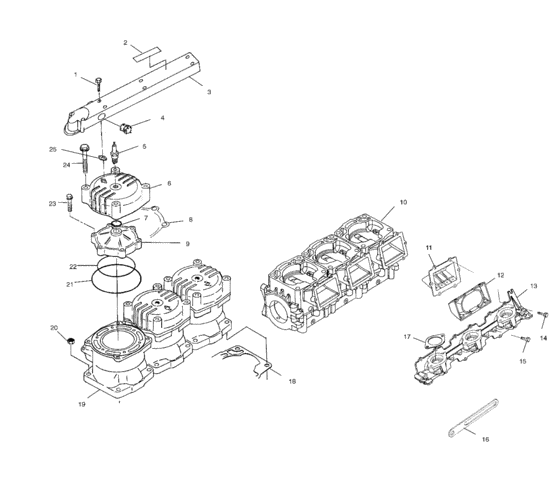

Cylinder and manifold (W025199D/W025199I) Diagram Polaris INT'L VIRAGE TX
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7516806 Bolt |
7516806 |
US $6.69 |
||
|
2
|
2
7075383
Decal, warning
|
7075383 |
— | ||
|
3
|
3
1202083-093
Asm-water manifold,3 cyl,hfred
|
1202083-093 |
— | ||
|
4
|
4
7051527
Plug,pipe
|
7051527 |
— | ||
|
5
|
5
3070163 Sparkplug br9es (10) |
3070163 |
US $4.53 |
||
|
6
|
6
5630527-093
Cover,head,red,big bore
|
5630527-093 |
— | ||
|
7
|
7
5410917 O-ring(10) |
5410917 |
US $5.23 |
||
|
8
|
8
5241944
Ring,head,81mm-ss
|
5241944 |
— | ||
|
9
|
9
3021122
Head,cyl,84mm pwc,msv
|
3021122 |
— | ||
|
11
|
11
1201595 Reed block asm,triple |
1201595 |
US $101.40 |
||
|
12
|
12
5432162
Stuffer-reed block
|
5432162 |
— | ||
|
13
|
13
5630582
Adaptor, carburetor, 3 cylinder
|
5630582 |
— | ||
|
14
|
14
7516807 Bolt |
7516807 |
US $5.22 |
||
|
15
|
15
7516814 Bolt(10) |
7516814 |
US $3.75 |
||
|
16
|
16
7080654 Retainer,ss, |
7080654 |
US $22.73 |
||
|
17
|
17
5830043
Gasket,carb,
|
5830043 |
— | ||
|
18
|
18
5830123
Gasket,cyl.base
|
5830123 |
— | ||
|
19
|
19
3021017
Cylinder-84mm,pwc
|
3021017 |
— | ||
|
20
|
20
7547021 Nut |
7547021 |
US $4.43 |
||
|
21
|
21
5410931 O-ring |
5410931 |
US $12.30 |
||
|
22
|
22
5411573
O-ring-90mmx94mmx2mm,hi-temp
|
5411573 |
— | ||
|
23
|
23
7517352
Screw, s,s,
|
7517352 |
— | ||
|
24
|
24
7516722 Bolt |
7516722 |
US $11.25 |
||
|
25
|
25
5830061
Gasket,water manif,
|
5830061 |
— |
