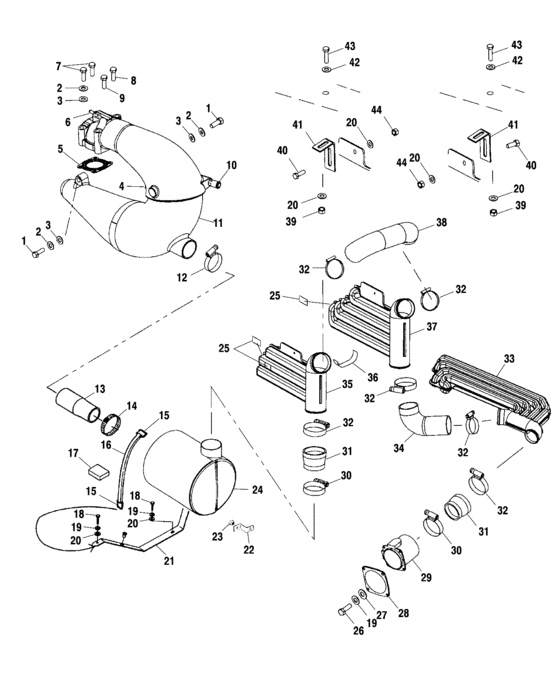

Exhaust system (W025199D/W025199I) Diagram Polaris INT'L VIRAGE TX
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517309
Screw
|
7517309 |
— | ||
|
2
|
2
7552611
Washer, lock,ss,
|
7552611 |
— | ||
|
3
|
3
7555856
Washer, flat, s,s,
|
7555856 |
— | ||
|
5
|
5
5830051
Gasket,exh,pipe
|
5830051 |
— | ||
|
6
|
6
7052105
Fitting,screen,exh,
|
7052105 |
— | ||
|
7
|
7
7517004
Bolt, s,s,(10)
|
7517004 |
— | ||
|
8
|
8
7517005
Bolt, s,s,
|
7517005 |
— | ||
|
9
|
9
7517209
Screw, s,s,
|
7517209 |
— | ||
|
10
|
10
5020668
Fitting,water inlet
|
5020668 |
— | ||
|
11
|
11
1261084-093
Asm-exhst pipe 3cyl pwc-01fred
|
1261084-093 |
— | ||
|
12
|
12
7080766 Clamp,hose,ss, (10) |
7080766 |
US $1.89 |
||
|
13
|
13
5411117
Hose,pipe/silencer
|
5411117 |
— | ||
|
14
|
14
7080446 Clamp, hose |
7080446 |
US $9.85 |
||
|
15
|
15
5224472
Hook,'d',sst/ss,(10)
|
5224472 |
— | ||
|
16
|
16
5410853
Strap,rubber
|
5410853 |
— | ||
|
17
|
17
5811341
Pad,foam,short
|
5811341 |
— | ||
|
18
|
18
7515127
Bolt
|
7515127 |
— | ||
|
19
|
19
7555838
Washer, lock, s,s,
|
7555838 |
— | ||
|
20
|
20
7555839
Washer, flat, s,s,(10)
|
7555839 |
— | ||
|
21
|
21
5241732
Cradle,silencer
|
5241732 |
— | ||
|
22
|
22
5243742
Brkt,silencer,short
|
5243742 |
— | ||
|
23
|
23
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
24
|
24
1260746-093
Silencer, exhaust
|
1260746-093 |
— | ||
|
25
|
25
5812094
Pad-resonator,virage
|
5812094 |
— | ||
|
26
|
26
7515127
Bolt
|
7515127 |
— | ||
|
27
|
27
7555836 Washer |
7555836 |
US $2.28 |
||
|
28
|
28
5810529
Seal,exh,fitting
|
5810529 |
— | ||
|
29
|
29
5132446 Fitting,exhaust,2 5/8 id |
5132446 |
US $34.67 |
||
|
30
|
30
7080445 Clamp, hose(10) |
7080445 |
US $13.14 |
||
|
31
|
31
5411951
Hose,exhaust,3,00x2,25l
|
5411951 |
— | ||
|
32
|
32
7080907 Clamp,hose,3,75,ss |
7080907 |
US $9.85 |
||
|
33
|
33
5433629
Resonator 3
|
5433629 |
— | ||
|
34
|
34
5411863
Hose,exhst,3,00,crsovr 2
|
5411863 |
— | ||
|
35
|
35
5433812
Resonator,exhaust,3cyl,#1
|
5433812 |
— | ||
|
36
|
36
5830197
Pad, resonator bracket
|
5830197 |
— | ||
|
37
|
37
5433813
Resonator,exhaust,3cyl,#2
|
5433813 |
— | ||
|
37
|
37
5411932
Hose,exhaust,crossover
|
5411932 |
— | ||
|
38
|
38
5521561
Conduit
|
5521561 |
— | ||
|
39
|
39
7546704
Nut, nylok, ss,
|
7546704 |
— | ||
|
40
|
40
7517870
Scr-1/4-20x1,0,ss,carriage(10)
|
7517870 |
— | ||
|
41
|
41
5245130
Bracket
|
5245130 |
— | ||
|
42
|
42
7555870
Washer,rubber(10)
|
7555870 |
— | ||
|
43
|
43
7517798 Scr,m6x1,0x25 ss |
7517798 |
US $1.93 |
||
|
44
|
44
7542133
Nut,nylok,s,s,
|
7542133 |
— |
