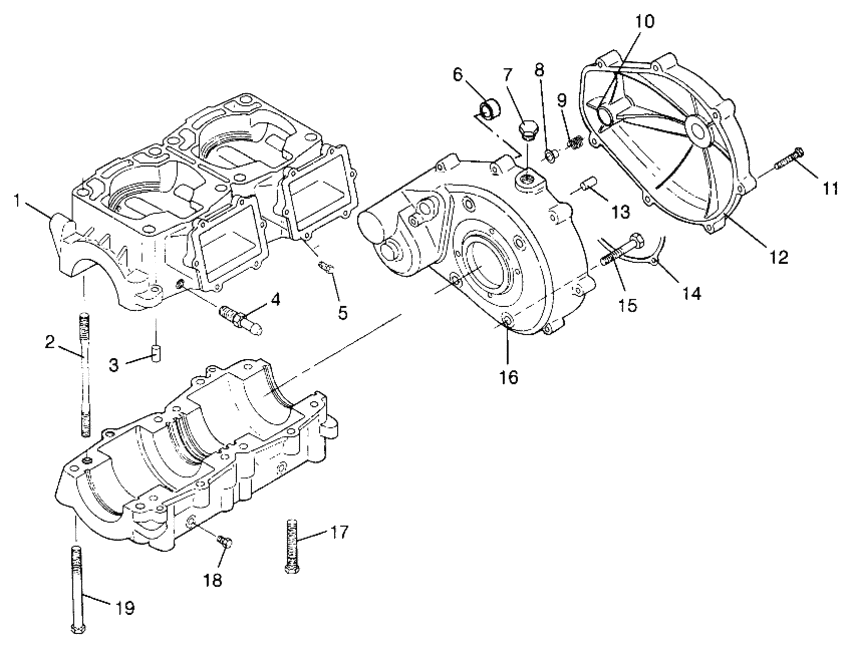

Crankcase (SL 700 B964066 and Intl. SL 700 I964066) Diagram Polaris SL 700
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2200676
Kit,crankcase asm,twin
Incl. 2-19; |
2200676 |
— | ||
| replacement | |||||
|
1
|
1
2201210
Kit,crankcase asm(pwc twinupdt,
Incl. 2-19; |
2201210 |
— | ||
|
2
|
2
5131442
Stud,cyl.flange,152mm
|
5131442 |
— | ||
| replacement | |||||
|
2
|
2
5131677
Stud,cyl,flange,152mm,sps
|
5131677 |
— | ||
|
3
|
3
7663001 Pin, dowel |
7663001 |
US $9.85 |
||
|
4
|
4
7052135
Fitting
|
7052135 |
— | ||
|
5
|
5
7051521
Plug, brass(10)
10; |
7051521 |
— | ||
|
6
|
6
1201564
Housing,starter
|
1201564 |
— | ||
| replacement | |||||
|
6
|
6
2201613
Kit-flywheel,housing
|
2201613 |
— | ||
|
7
|
7
7051526 Plug,pipe(10)10; |
7051526 |
US $1.89 |
||
|
8
|
8
3574214
Bushing,plastic
|
3574214 |
— | ||
|
9
|
9
7041457
Spring
|
7041457 |
— | ||
|
10
|
10
3569806
Bushing
|
3569806 |
— | ||
|
11
|
11
7516806 Bolt10; |
7516806 |
US $6.69 |
||
|
12
|
12
1201563
Cover asm,ign.hsg.
|
1201563 |
— | ||
|
13
|
13
7663002
Pin, dowel
|
7663002 |
— | ||
|
14
|
14
5811145
Gasket,flywheel cvr.
|
5811145 |
— | ||
| replacement | |||||
|
14
|
14
5811550
Gasket,flywheel cover
|
5811550 |
— | ||
|
15
|
15
7516723
Bolt
10; |
7516723 |
— | ||
|
16
|
16
3569805
Bushing
|
3569805 |
— | ||
|
17
|
17
7516725
Bolt, s,s,(10)
10; |
7516725 |
— | ||
|
18
|
18
7051529 Plug |
7051529 |
US $9.91 |
||
| replacement | |||||
|
18
|
18
7052311
New Genuine Part
|
7052311 |
— | ||
|
19
|
19
7516913
Bolt, s,s
|
7516913 |
— | ||
