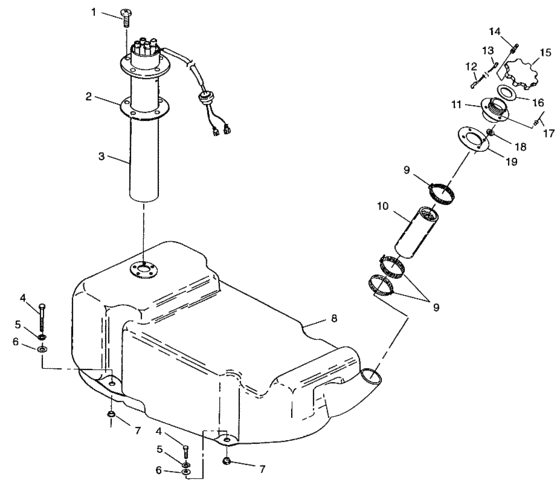

Fuel tank (SL 700 B964066 and Intl. SL 700 I964066) Diagram Polaris SL 700
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512045 Bolt, ss,10; |
7512045 |
US $2.45 |
||
|
2
|
2
5810858 Gasket |
5810858 |
US $61.34 |
||
|
3
|
3
2410047
Sender/pickup asm,fuel,,sl
|
2410047 |
— | ||
|
4
|
4
7515365
Bolt, s,s,
|
7515365 |
— | ||
|
5
|
5
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
6
|
6
7555834
Washer, s,s,
10; |
7555834 |
— | ||
|
7
|
7
5333114 Bushing,fuel,tank(10)10; |
5333114 |
US $9.38 |
||
|
8
|
8
5431939
Tank,fuel,9,8 gal,
|
5431939 |
— | ||
|
9
|
9
7080439 Clamp, hose10; |
7080439 |
US $7.68 |
||
|
10
|
10
5410969
Hose,fill,fuel
|
5410969 |
— | ||
|
11
|
11
5432613-070
Inlet,fuel,blk
PWC; |
5432613-070 |
— | ||
| replacement | |||||
|
11
|
11
2872029
Inlet asm,fuel cap
PWC; |
2872029 |
— | ||
|
12
|
12
7080440
Chain
|
7080440 |
— | ||
| replacement | |||||
|
12
|
12
7080710
Chain,bead
|
7080710 |
— | ||
|
13
|
13
7080442
Coupling, end
|
7080442 |
— | ||
|
14
|
14
7511873
Screw
10; |
7511873 |
— | ||
|
15
|
15
2653009
Cap asm,fuel
|
2653009 |
— | ||
| replacement | |||||
|
15
|
15
2872029
Inlet asm,fuel cap
|
2872029 |
— | ||
|
16
|
16
5810871
Gasket,fuel cap
|
5810871 |
— | ||
|
17
|
17
7621491
Rivet,(50)
50; |
7621491 |
— | ||
|
18
|
18
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
19
|
19
2872029
Inlet asm,fuel cap
incl. 11-19; |
2872029 |
— | ||
|
19
|
19
5810931
Seal,fuel inlet
|
5810931 |
— | ||
