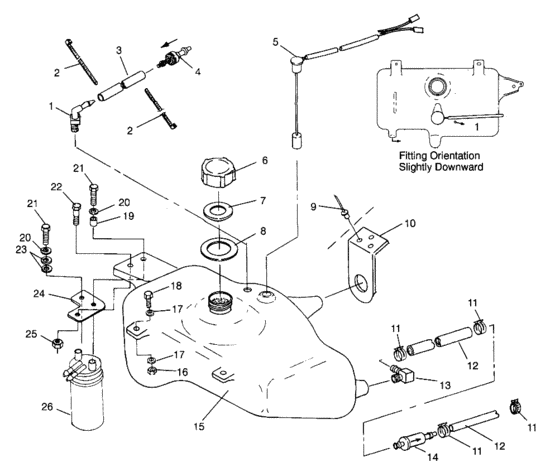

Oil tank (SL 700 B964066 and Intl. SL 700 I964066) Diagram Polaris SL 700
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7052130
Elbow,90 deg,
|
7052130 |
— | ||
|
2
|
2
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
|
3
|
3
8450003-30 Fuelline,30 cm, |
8450003-30 |
US $1.28 |
||
|
4
|
4
7052118
Valve,vacuum check
|
7052118 |
— | ||
|
5
|
5
4110196
Sensor,oil level,(sl)
SL; |
4110196 |
— | ||
|
6
|
6
5430779 Cap,oil tank |
5430779 |
US $14.28 |
||
|
7
|
7
5810141 Gasket-oil cap |
5810141 |
US $2.66 |
||
|
8
|
8
5810557
Gasket,inlet,oiltank
|
5810557 |
— | ||
|
9
|
9
7621478 Rivet (50) |
7621478 |
US $1.89 |
||
|
10
|
10
5222688
Hanger, oil tank
|
5222688 |
— | ||
|
11
|
11
7080307 Clamp,hose(10)10;Large Green; |
7080307 |
US $0.79 |
||
|
12
|
12
8450003-56
Desc not_available
|
8450003-56 |
— | ||
|
13
|
13
7052102
Fitting,brass
|
7052102 |
— | ||
|
14
|
14
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
15
|
15
5432309
Tank, oil
|
5432309 |
— | ||
| replacement | |||||
|
15
|
15
5432584
Tank, oil
|
5432584 |
— | ||
|
16
|
16
7541931 Nut, hex, s,s,10; |
7541931 |
US $3.43 |
||
|
17
|
17
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
18
|
18
7512041 Bolt, s,s,10; |
7512041 |
US $3.15 |
||
|
19
|
19
5333514 Spacer |
5333514 |
US $4.25 |
||
|
20
|
20
7552613
Washer, lock
10; |
7552613 |
— | ||
|
21
|
21
7516805
Screw, s,s,(10)
10; |
7516805 |
— | ||
|
22
|
22
7515185
Screw
|
7515185 |
— | ||
|
23
|
23
7555836 Washer10; |
7555836 |
US $2.28 |
||
|
24
|
24
5211662
Bracket
|
5211662 |
— | ||
|
25
|
25
7542133
Nut,nylok,s,s,
10; |
7542133 |
— | ||
