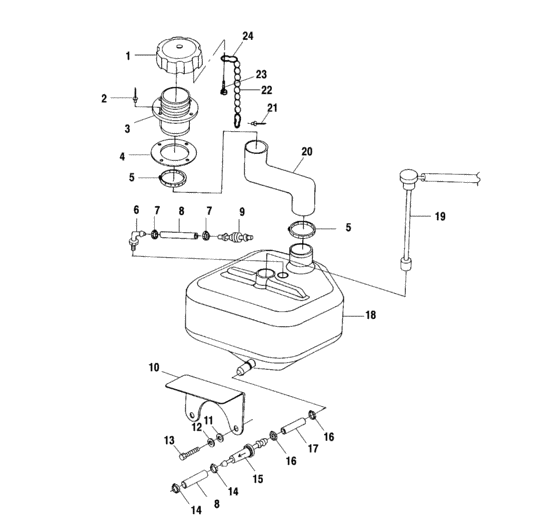

Oil tank (W014699D) Diagram Polaris SLX
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5432843
Cap,oiltank
|
5432843 |
— | ||
|
2
|
2
7661042 Rivet-pop (50)50; |
7661042 |
US $1.89 |
||
|
3
|
3
5433914
Inlet-oil,,150
|
5433914 |
— | ||
|
4
|
4
5811554
Gasket,oil inlet
|
5811554 |
— | ||
|
5
|
5
7080772
Clamp,hose, ss,
|
7080772 |
— | ||
|
6
|
6
7052130
Elbow,90 deg,
|
7052130 |
— | ||
|
7
|
7
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
|
8
|
8
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
9
|
9
7052118
Valve,vacuum check
|
7052118 |
— | ||
|
10
|
10
5211866
Plate,mt,tank,oil
|
5211866 |
— | ||
|
11
|
11
7555961
Washer,lock
|
7555961 |
— | ||
|
12
|
12
7555836 Washer10; |
7555836 |
US $2.28 |
||
|
13
|
13
7515143
Screw, s,s,(10)
10; |
7515143 |
— | ||
|
14
|
14
7080307 Clamp,hose(10)10; |
7080307 |
US $0.79 |
||
|
15
|
15
2530015
Filter,oil
|
2530015 |
— | ||
|
16
|
16
7080474 Clamp, hose (10)10; |
7080474 |
US $5.64 |
||
|
17
|
17
8450059-150 Fuel line |
8450059-150 |
US $50.24 |
||
|
18
|
18
5432768
Tank,oil,
SL2; |
5432768 |
— | ||
|
19
|
19
2410079
Sender asm,oil level
|
2410079 |
— | ||
|
20
|
20
5433636
Hose,fill,oil
|
5433636 |
— | ||
|
21
|
21
7621229 Rivet(50)50; |
7621229 |
US $0.79 |
||
|
22
|
22
7080710
Chain,bead
|
7080710 |
— | ||
|
23
|
23
7517241 Screw, ss, (10) |
7517241 |
US $1.89 |
||
|
24
|
24
7080442
Coupling, end
|
7080442 |
— |
