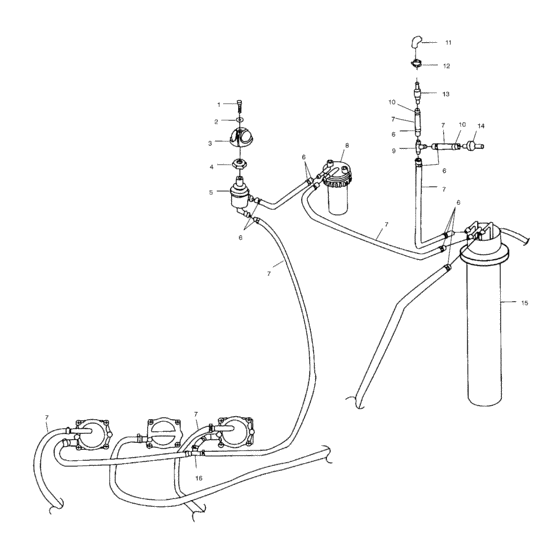

Fuel system (W005199D) Diagram Polaris VIRAGE TX
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7516302 Screw, s,s,(10)10; |
7516302 |
US $1.89 |
||
|
2
|
2
7555840
Washer, flat, s,s,
10; |
7555840 |
— | ||
|
3
|
3
5432836-070
Knob,fuelvalve,blk,
|
5432836-070 |
— | ||
|
4
|
4
5431451 Nut, fuel valve |
5431451 |
US $5.65 |
||
|
5
|
5
7052159 Valve,on/off |
7052159 |
US $40.58 |
||
|
6
|
6
7080476 Clamp, hose, s,s,10; |
7080476 |
US $9.10 |
||
|
7
|
7
8450046-1525
Line, fuel
1525 CM.; |
8450046-1525 |
— | ||
| replacement | |||||
|
7
|
7
8450046-250
New Genuine Part
1525 CM.; |
8450046-250 |
— | ||
|
9
|
9
7052111
Fitting,tee
|
7052111 |
— | ||
|
10
|
10
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
11
|
11
5410682
Grommet, vent
|
5410682 |
— | ||
|
12
|
12
7080483
Cable tie,4 inch
10; |
7080483 |
— | ||
|
13
|
13
7051015
Valve,check,relief
|
7051015 |
— | ||
|
14
|
14
7052118
Valve,vacuum check
|
7052118 |
— | ||
|
16
|
16
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
