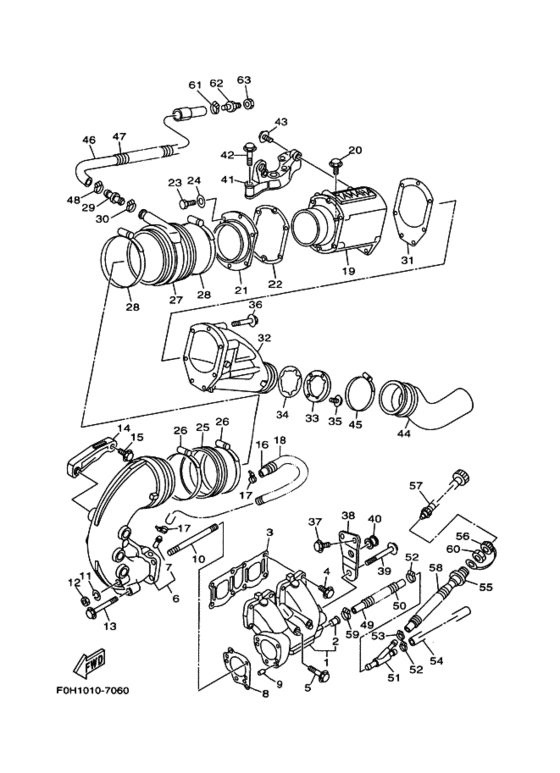

Exhaust 1 Diagram Yamaha GP760
- Model code
- F0H1
- Engine Capacity
- 760
- Year
- 1997
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64X-14711-00-9M Muffler 1ＭＵＦＦＬＥＲ １; |
64X-14711-00-9M |
US $527.36 |
||
| replacement | |||||
|
1
|
1
64X-14711-00-94 Muffler 1ＭＵＦＦＬＥＲ １; |
64X-14711-00-94 |
US $527.36 |
||
|
2
|
2
6K8-51129-00-00 Nipple．ＮＩＰＰＬＥ; |
6K8-51129-00-00 |
from US $7.65 |
||
|
3
|
3
62T-14613-00-00
Gasket, Exhaust Pipe
ＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＰＩＰＥ; |
62T-14613-00-00 |
— | ||
| replacement | |||||
|
3
|
3
62T-14613-01-00 Gasket, Exhaust PipeＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＰＩＰＥ; |
62T-14613-01-00 |
from US $22.16 |
||
|
4
|
4
90105-10M60-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M60-00 |
from US $7.23 |
||
|
5
|
5
90105-10M72-00 Bolt, Washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M72-00 |
US $9.09 |
||
|
6
|
6
64X-14712-00-9M
Ring, Joint
ＲＩＮＧ， ＪＯＩＮＴ; |
64X-14712-00-9M |
— | ||
| replacements | |||||
|
6
|
6
64X-14712-00-9P
Ring, Joint
ＲＩＮＧ， ＪＯＩＮＴ; |
64X-14712-00-9P |
— | ||
|
6
|
6
64X-14712-00-94
Ring, Joint
ＲＩＮＧ， ＪＯＩＮＴ; |
64X-14712-00-94 |
— | ||
|
7
|
7
6K8-51129-00-00 Nipple．ＮＩＰＰＬＥ; |
6K8-51129-00-00 |
from US $7.65 |
||
|
8
|
8
64X-14749-00-00 Gasket, Muffler Damper 2ＧＡＳＫＥＴ， ＭＵＦＦＬＥＲ ＤＡＭＰＥＲ ２; |
64X-14749-00-00 |
from US $26.03 |
||
|
9
|
9
93605-12M21-00 Pin, DowelＰＩＮ， ＤＯＷＥＬ; |
93605-12M21-00 |
from US $2.69 |
||
|
10
|
10
90116-08M59-00
Bolt, Stud
ＢＯＬＴ， ＳＴＵＤ; |
90116-08M59-00 |
— | ||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, SpringＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
92990-08100-00 |
from US $1.34 |
||
|
12
|
12
953-80086-00-00
Nut, Hex
ＮＵＴ; |
953-80086-00-00 |
— | ||
| replacements | |||||
|
12
|
12
997-80086-00-00 Nut, HexＮＵＴ; |
997-80086-00-00 |
from US $1.59 |
||
|
12
|
12
988-80081-00-00 Ybs55-8 Nut (644)ＮＵＴ; |
988-80081-00-00 |
from US $1.57 |
||
|
13
|
13
90119-08M11-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08M11-00 |
from US $3.83 |
||
|
14
|
14
64X-14781-00-94 Stay, Muffler 2ＳＴＡＹ， ＭＵＦＦＬＥＲ ２; |
64X-14781-00-94 |
US $96.77 |
||
|
15
|
15
90105-10M73-00 Bolt, Washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M73-00 |
US $4.88 |
||
|
16
|
16
63M-12577-00-00
Hose 2
ＨＯＳＥ ２; |
63M-12577-00-00 |
— | ||
|
17
|
17
904-6511M-10-00
Clamp
ＣＬＡＭＰ; |
904-6511M-10-00 |
— | ||
| replacements | |||||
|
17
|
17
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
17
|
17
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
|
18
|
18
90446-20M31-00 HoseＨＯＳＥ; |
90446-20M31-00 |
from US $6.66 |
||
|
19
|
19
64X-14721-00-94 Muffler 2ＭＵＦＦＬＥＲ ２; |
64X-14721-00-94 |
from US $512.86 |
||
|
20
|
20
90105-10M60-00 Bolt, FlangeＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M60-00 |
from US $7.23 |
||
|
21
|
21
62T-41113-00-9M Outer Cover, ExhaustＯＵＴＥＲ ＣＯＶＥＲ， ＥＸＨＡＵＳＴ; |
62T-41113-00-9M |
from US $91.32 |
||
| replacement | |||||
|
21
|
21
62T-41113-00-8S Outer Cover, ExhaustＯＵＴＥＲ ＣＯＶＥＲ， ＥＸＨＡＵＳＴ; |
62T-41113-00-8S |
from US $74.43 |
||
|
22
|
22
62T-41114-01-00 Gasket, Exhaust Outer CoverＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＯＵＴＥＲ ＣＯＶＥＲ; |
62T-41114-01-00 |
from US $16.29 |
||
|
23
|
23
97013-06025-00 BoltＢＯＬＴ; |
97013-06025-00 |
from US $1.48 |
||
|
24
|
24
929-03066-00-00
Washer, Plate
ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-03066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646)ＷＡＳＨＥＲ， ＰＬＡＴＥ; |
929-90066-00-00 |
from US $1.07 |
||
|
25
|
25
62T-14625-00-00 Joint, Exhaust 2ＪＯＩＮＴ， ＥＸＨＡＵＳＴ ２; |
62T-14625-00-00 |
from US $77.38 |
||
|
26
|
26
90450-99M06-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-99M06-00 |
from US $44.32 |
||
|
27
|
27
64X-14615-00-00
Joint, Exhaust 1
ＪＯＩＮＴ， ＥＸＨＡＵＳＴ １; |
64X-14615-00-00 |
— | ||
|
28
|
28
90450-99M16-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-99M16-00 |
from US $54.30 |
||
| replacement | |||||
|
28
|
28
90450-99M18-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-99M18-00 |
from US $54.30 |
||
|
29
|
29
64X-12582-00-00 Joint, Hose 2ＪＯＩＮＴ， ＨＯＳＥ ２; |
64X-12582-00-00 |
from US $3.67 |
||
|
30
|
30
90450-22M14-00 Hose Clamp Assy(64X)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-22M14-00 |
from US $7.65 |
||
|
31
|
31
64X-41124-00-00 Gasket, Exhaust OuteＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＯＵＴＥＲ ＣＯＶＥＲ; |
64X-41124-00-00 |
from US $45.14 |
||
| replacement | |||||
|
31
|
31
64X-41124-01-00 Gasket, Exhaust Outer CoverＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＯＵＴＥＲ ＣＯＶＥＲ; |
64X-41124-01-00 |
from US $29.53 |
||
|
32
|
32
64X-41123-00-9M Outer Cover, ExhaustＯＵＴＥＲ ＣＯＶＥＲ， ＥＸＨＡＵＳＴ; |
64X-41123-00-9M |
US $583.79 |
||
|
33
|
33
64X-14763-00-94 SpacerＳＰＡＣＥＲ; |
64X-14763-00-94 |
US $18.95 |
||
|
34
|
34
64X-14623-00-00 Gasket, Exhaust PipeＧＡＳＫＥＴ， ＥＸＨＡＵＳＴ ＰＩＰＥ; |
64X-14623-00-00 |
from US $6.52 |
||
|
35
|
35
97985-06220-00 Screw, With Washer(64X)ＳＣＲＥＷ， ＷＩＴＨ ＷＡＳＨＥＲ; |
97985-06220-00 |
from US $1.98 |
||
|
36
|
36
90105-08M70-00 Bolt, Washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08M70-00 |
from US $2.50 |
||
|
37
|
37
90105-08M71-00 Bolt, Washer BasedＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-08M71-00 |
US $3.29 |
||
|
38
|
38
64X-14717-01-00
Plate, Stopper
ＰＬＡＴＥ， ＳＴＯＰＰＥＲ; |
64X-14717-01-00 |
— | ||
|
39
|
39
90119-08M37-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-08M37-00 |
from US $9.11 |
||
|
40
|
40
904-8020M-05-00 GrommetＧＲＯＭＭＥＴ; |
904-8020M-05-00 |
from US $1.34 |
||
|
41
|
41
62T-14771-00-94
Stay, Muffler 1
ＳＴＡＹ， ＭＵＦＦＬＥＲ １; |
62T-14771-00-94 |
— | ||
| replacement | |||||
|
41
|
41
62T-14771-00-00 Stay, Muffler 1ＳＴＡＹ， ＭＵＦＦＬＥＲ １; |
62T-14771-00-00 |
from US $79.68 |
||
|
42
|
42
90119-10M72-00 Bolt, With WasherＢＯＬＴ， ＷＩＴＨ ＷＡＳＨＥＲ; |
90119-10M72-00 |
from US $2.27 |
||
|
43
|
43
90105-10M45-00 Bolt, Flange(L=36.5, P=1.25X2)ＢＯＬＴ， ＷＡＳＨＥＲ ＢＡＳＥＤ; |
90105-10M45-00 |
from US $4.96 |
||
|
44
|
44
65V-14752-00-00 Pipe, OutletＰＩＰＥ， ＯＵＴＬＥＴ; |
65V-14752-00-00 |
from US $121.27 |
||
|
45
|
45
90450-88M15-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-88M15-00 |
from US $29.89 |
||
| replacement | |||||
|
45
|
45
90450-90001-00 Hose Clamp AssyＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-90001-00 |
from US $29.44 |
||
|
46
|
46
65V-12578-00-00
Hose 3
ＨＯＳＥ ３; |
65V-12578-00-00 |
— | ||
|
47
|
47
90446-27M73-00 Hose (L700)ＨＯＳＥ; |
90446-27M73-00 |
from US $13.74 |
||
|
48
|
48
90450-22M14-00 Hose Clamp Assy(64X)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-22M14-00 |
from US $7.65 |
||
|
49
|
49
90445-14M06-00 HoseＨＯＳＥ; |
90445-14M06-00 |
US $36.52 |
||
| replacement | |||||
|
49
|
49
90445-14M03-00 HoseＨＯＳＥ; |
90445-14M03-00 |
US $36.52 |
||
|
50
|
50
90446-20M31-00 HoseＨＯＳＥ; |
90446-20M31-00 |
from US $6.66 |
||
|
51
|
51
64X-12581-00-00 Joint, Hose 1ＪＯＩＮＴ， ＨＯＳＥ １; |
64X-12581-00-00 |
from US $8.08 |
||
|
52
|
52
90450-14M05-00 Hose Clamp Assy(62T)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-14M05-00 |
from US $9.07 |
||
|
53
|
53
90450-18M09-00 Hose Clamp Assy(63M)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-18M09-00 |
from US $10.77 |
||
|
54
|
54
90445-14M10-00 HoseＨＯＳＥ; |
90445-14M10-00 |
US $36.52 |
||
| replacement | |||||
|
54
|
54
90445-14M03-00 HoseＨＯＳＥ; |
90445-14M03-00 |
US $36.52 |
||
|
55
|
55
63M-12580-00-00 Joint AssyＪＯＩＮＴ ＡＳＳＹ; |
63M-12580-00-00 |
from US $86.30 |
||
|
56
|
56
682-84385-01-00 Cap,1ＣＡＰ １; |
682-84385-01-00 |
from US $8.28 |
||
|
57
|
57
63M-12590-10-00 Conduction AssyＣＯＮＤＵＣＴＩＯＮ ＡＳＳＹ; |
63M-12590-10-00 |
from US $25.79 |
||
| replacement | |||||
|
57
|
57
67X-E2590-10-00 Conduction AssyＣＯＮＤＵＣＴＩＯＮ ＡＳＳＹ; |
67X-E2590-10-00 |
from US $9 |
||
|
58
|
58
90446-24M80-00 Hose ProtectorＨＯＳＥ; |
90446-24M80-00 |
from US $10.58 |
||
| replacement | |||||
|
58
|
58
90446-24M81-00 Hose ProtectorＨＯＳＥ; |
90446-24M81-00 |
from US $10.58 |
||
|
59
|
59
90450-14M05-00 Hose Clamp Assy(62T)ＨＯＳＥ ＣＬＡＭＰ ＡＳＳＹ; |
90450-14M05-00 |
from US $9.07 |
||
|
60
|
60
EU0-61652-00-00 NutＮＵＴ; |
EU0-61652-00-00 |
from US $6.94 |
||
|
61
|
61
90601-20005-00 BandＢＡＮＤ; |
90601-20005-00 |
from US $1.98 |
||
|
62
|
62
GP7-672A4-00-00 Nut, Thru-HullＮＵＴ， ＴＨＲＵＨＵＬＬ; |
GP7-672A4-00-00 |
US $7.61 |
||
| replacement | |||||
|
62
|
62
GU0-61652-00-00 NutＮＵＴ， ＴＨＲＵＨＵＬＬ; |
GU0-61652-00-00 |
US $5.62 |
||
|
63
|
63
90604-80797-00
Through Hull Connection 3/8-12
ＴＨＲＯＵＧＨ ＨＵＬＬ; |
90604-80797-00 |
— | ||
