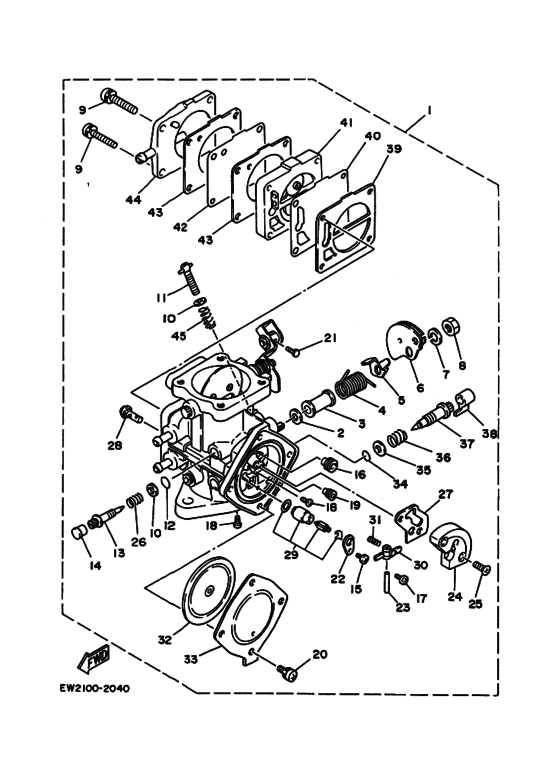

Carburetor Diagram Yamaha SJ650
- Model code
- EW2C
- Engine Capacity
- 650
- Year
- 1992
- Sales region
- Japan (010)
- Colour
- Pure White (PURW; 0240)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R7-14301-01-00
Carburetor Assembly 1
ＣＡＲＢＵＲＥＴＯＲ ＡＳＳＹ １; |
6R7-14301-01-00 |
— | ||
|
2
|
2
6R7-14596-00-00 Washer．ＷＡＳＨＥＲ; |
6R7-14596-00-00 |
US $1.39 |
||
|
3
|
3
6K8-14534-10-00 Collar．ＣＯＬＬＡＲ; |
6K8-14534-10-00 |
from US $12.61 |
||
|
4
|
4
6K8-14556-10-00 Spring．ＳＰＲＩＮＧ; |
6K8-14556-10-00 |
US $17.89 |
||
|
5
|
5
6K8-14926-10-00 Bracket, Throttle 1．ＢＲＡＣＫＥＴ， ＴＨＲＯＴＴＬＥ １; |
6K8-14926-10-00 |
from US $14.03 |
||
|
6
|
6
6K8-14930-10-00 Throttle Shaft Assembly．ＴＨＲＯＴＴＬＥ ＳＨＡＦＴ ＡＳＳＹ; |
6K8-14930-10-00 |
US $23.72 |
||
| replacement | |||||
|
6
|
6
6K8-14930-00-00
Throttle Shaft Assembly
．ＴＨＲＯＴＴＬＥ ＳＨＡＦＴ ＡＳＳＹ; |
6K8-14930-00-00 |
— | ||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ; |
92990-08100-00 |
from US $1.36 |
||
|
8
|
8
95380-08700-00 Nut．ＮＵＴ; |
95380-08700-00 |
from US $1.42 |
||
|
9
|
9
979-80053-30-00
Screw,pan Head W/w
．ＳＣＲＥＷ， ＷＩＴＨ ＷＡＳＨＥＲ; |
979-80053-30-00 |
— | ||
| replacement | |||||
|
9
|
9
97985-05330-00 Screw, With Washer．ＳＣＲＥＷ， ＷＩＴＨ ＷＡＳＨＥＲ; |
97985-05330-00 |
from US $2.13 |
||
|
10
|
10
6K8-14559-00-00 Washer．ＷＡＳＨＥＲ; |
6K8-14559-00-00 |
from US $3.26 |
||
|
11
|
11
6K8-14521-00-00 Screw, Adjust．ＳＣＲＥＷ， ＡＤＪＵＳＴ; |
6K8-14521-00-00 |
from US $33.58 |
||
|
12
|
12
6K8-14562-00-00 O-Ring．Ｏ−ＲＩＮＧ; |
6K8-14562-00-00 |
from US $1.36 |
||
|
13
|
13
6K8-14946-10-00 Plate, Needle Fitting．ＰＬＡＴＥ， ＮＥＥＤＬＥ ＦＩＴＴＩＮＧ; |
6K8-14946-10-00 |
from US $21.82 |
||
|
14
|
14
6K8-14471-00-00
Cap, Carburetor
．ＣＡＰ; |
6K8-14471-00-00 |
— | ||
|
15
|
15
6M6-14503-00-00 Adjust Screw Set．ＳＣＲＥＷ， ＰＡＮ ＨＥＡＤ ＷＩＴＨ ＷＡＳＨＥＲ; |
6M6-14503-00-00 |
from US $4.68 |
||
|
16
|
16
3G2-14231-23-A0 Jet, Main (#115)．ＪＥＴ， ＭＡＩＮ ; ＃１１５ |
3G2-14231-23-A0 |
from US $13.73 |
||
|
17
|
17
6K8-14503-02-00 Adjust Screw Set．ＳＣＲＥＷ， ＯＶＡＬ ＨＥＡＤ; |
6K8-14503-02-00 |
from US $4.53 |
||
|
18
|
18
6K8-14521-10-00 Screw, Adjust．ＳＣＲＥＷ， ＡＤＪＵＳＴ; |
6K8-14521-10-00 |
from US $32.30 |
||
|
19
|
19
830-14231-24-00 Jet, Main．ＪＥＴ， ＭＡＩＮ ; ＃１２０ |
830-14231-24-00 |
from US $8.96 |
||
|
20
|
20
6K8-14591-10-00 Screw．ＳＣＲＥＷ; |
6K8-14591-10-00 |
from US $2.69 |
||
|
21
|
21
6K8-14592-00-00 Screw．ＳＣＲＥＷ; |
6K8-14592-00-00 |
US $7.70 |
||
|
22
|
22
6K8-14527-11-00 Plate．ＰＬＡＴＥ; |
6K8-14527-11-00 |
from US $7.08 |
||
|
23
|
23
6K8-14579-00-00
Pin,fl0At
．ＰＩＮ， ＦＬＯＡＴ; |
6K8-14579-00-00 |
— | ||
|
24
|
24
6R7-24412-01-00 Body 1．ＢＯＤＹ １; |
6R7-24412-01-00 |
from US $20.65 |
||
|
25
|
25
6K8-14523-11-00 Screw, Stop．ＳＣＲＥＷ， ＦＬＡＴ ＨＥＡＤ; |
6K8-14523-11-00 |
from US $7.23 |
||
|
26
|
26
6K8-14533-00-00
Spring, Adjust Screw
．ＳＰＲＩＮＧ， ＡＤＪＵＳＴ ＳＣＲＥＷ; |
6K8-14533-00-00 |
— | ||
|
27
|
27
6K8-14536-11-00 Gasket．ＧＡＳＫＥＴ; |
6K8-14536-11-00 |
from US $7.37 |
||
|
28
|
28
6R7-14569-00-00 Strainer．ＳＴＲＡＩＮＥＲ; |
6R7-14569-00-00 |
from US $8.93 |
||
|
29
|
29
61L-14916-15-00 Jet Needle Comp．ＮＥＥＤＬＥ; |
61L-14916-15-00 |
from US $19.69 |
||
| replacement | |||||
|
29
|
29
61X-14916-16-00 Jet Needle Comp．ＮＥＥＤＬＥ; |
61X-14916-16-00 |
from US $19.69 |
||
|
30
|
30
6K8-14547-01-00 Arm, Float．ＡＲＭ， ＤＩＡＰＨＲＡＧＭ; |
6K8-14547-01-00 |
from US $6.94 |
||
|
31
|
31
6R7-14253-00-00 Spring．ＳＰＲＩＮＧ; |
6R7-14253-00-00 |
from US $1.36 |
||
|
32
|
32
6R7-14541-00-00 Diaphragm, Pump．ＤＩＡＰＨＲＡＧＭ， ＰＵＭＰ; |
6R7-14541-00-00 |
from US $24.09 |
||
|
33
|
33
6R7-14542-10-00 Body, Pump 1．ＢＯＤＹ， ＰＵＭＰ １; |
6R7-14542-10-00 |
US $57.80 |
||
|
34
|
34
583-14561-00-00 O-Ring．Ｏ−ＲＩＮＧ; |
583-14561-00-00 |
from US $2.70 |
||
|
35
|
35
6K8-14537-00-00 Gasket．ＧＡＳＫＥＴ; |
6K8-14537-00-00 |
from US $3.26 |
||
|
36
|
36
6K8-14589-00-00 Spring．ＳＰＲＩＮＧ; |
6K8-14589-00-00 |
from US $2.83 |
||
|
37
|
37
6K8-14923-10-00
Screw, Pilot
．ＳＣＲＥＷ， ＰＩＬＯＴ; |
6K8-14923-10-00 |
— | ||
|
38
|
38
6K8-14481-10-00
Cap, Carburetor
．ＣＡＰ， ＣＡＲＢＵＲＥＴＯＲ; |
6K8-14481-10-00 |
— | ||
|
39
|
39
6K8-24435-10-00
Gasket, Body 2
．ＧＡＳＫＥＴ， ＢＯＤＹ ２; |
6K8-24435-10-00 |
— | ||
|
40
|
40
6K8-24411-10-00 Diaphragm．ＤＩＡＰＨＲＡＧＭ; |
6K8-24411-10-00 |
from US $38.96 |
||
|
41
|
41
6K8-24413-10-00 Body 2．ＢＯＤＹ ２; |
6K8-24413-10-00 |
US $42.55 |
||
|
42
|
42
6K8-24421-10-00 Valve, Check．ＶＡＬＶＥ， ＣＨＥＣＫ; |
6K8-24421-10-00 |
from US $17.28 |
||
|
43
|
43
6K8-24431-10-00 Gasket, Fuel Pump 1．ＧＡＳＫＥＴ， ＦＵＥＬ ＰＵＭＰ １; |
6K8-24431-10-00 |
from US $9.63 |
||
|
44
|
44
6K8-24452-10-00 Cover．ＣＯＶＥＲ; |
6K8-24452-10-00 |
from US $13.14 |
||
|
45
|
45
6K8-14531-00-00 Spring, Adjust Screw．ＳＰＲＩＮＧ， ＡＤＪＵＳＴ ＳＣＲＥＷ; |
6K8-14531-00-00 |
US $4.23 |
||
