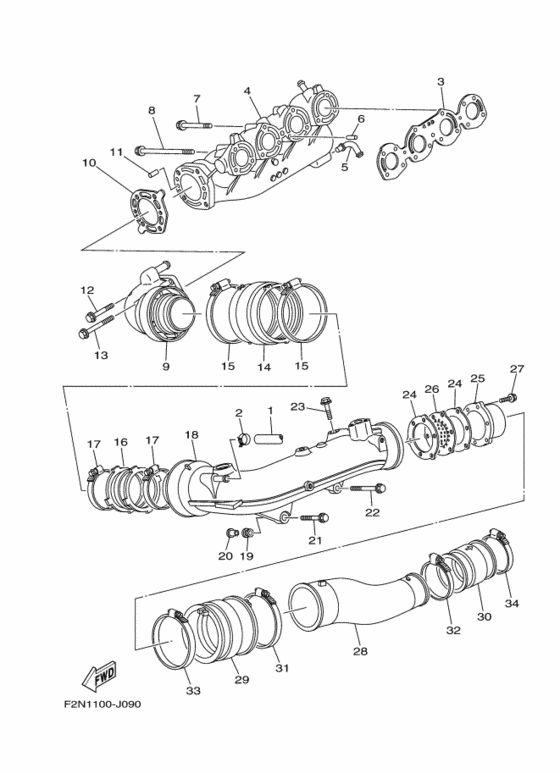

Exhaust 1 Diagram Yamaha VX1100
- Model code
- F2NJ
- Engine Capacity
- 1100
- Year
- 2011
- Sales region
- Europe (010)
- Colour
- Pure White
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90445-16005-00 Hose (L870) |
90445-16005-00 |
from US $34.14 |
||
|
2
|
2
90467-160A0-00 Clip |
90467-160A0-00 |
from US $4.30 |
||
|
3
|
3
6D3-14613-00-00 Gasket, Exhaust Pipe |
6D3-14613-00-00 |
from US $47.39 |
||
|
4
|
4
6D3-14711-00-94 Muffler 1 |
6D3-14711-00-94 |
from US $1,094.28 |
||
|
5
|
5
60E-11372-10-00 Nipple, Hose |
60E-11372-10-00 |
from US $16.01 |
||
|
6
|
6
936-0816M-16-00 Pin, Dowel |
936-0816M-16-00 |
from US $4.30 |
||
|
7
|
7
90119-08036-00 Bolt, With Washer |
90119-08036-00 |
from US $7.37 |
||
|
8
|
8
90119-08075-00 Bolt, With Washer |
90119-08075-00 |
from US $9.92 |
||
|
9
|
9
6D3-14712-00-94 Ring, Joint |
6D3-14712-00-94 |
from US $506.04 |
||
|
10
|
10
6D3-14739-01-00 Gasket, Muffler Damper 1 |
6D3-14739-01-00 |
from US $57.75 |
||
|
11
|
11
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
12
|
12
90119-08036-00 Bolt, With Washer |
90119-08036-00 |
from US $7.37 |
||
|
13
|
13
90119-08031-00 Bolt, With Washer |
90119-08031-00 |
from US $7.67 |
||
|
14
|
14
6D3-14615-00-00 Joint, Exhaust 1 |
6D3-14615-00-00 |
from US $57.89 |
||
|
15
|
15
90450-99005-00 Hose Clamp Assy |
90450-99005-00 |
from US $9.35 |
||
|
16
|
16
6D3-14625-00-00 Joint, Exhaust 2 |
6D3-14625-00-00 |
from US $34.14 |
||
|
17
|
17
90450-90001-00 Hose Clamp Assy |
90450-90001-00 |
from US $29.44 |
||
|
18
|
18
6D3-14721-00-94 Muffler 2 |
6D3-14721-00-94 |
from US $813.12 |
||
|
19
|
19
90480-21M63-00 Grommet |
90480-21M63-00 |
from US $6.96 |
||
|
20
|
20
90387-11002-00 Collar |
90387-11002-00 |
from US $8.50 |
||
| replacement | |||||
|
20
|
20
903-87110-08-00 Collar |
903-87110-08-00 |
from US $8.50 |
||
|
21
|
21
90119-10011-00 Bolt, With Washer |
90119-10011-00 |
from US $4.96 |
||
|
22
|
22
90119-10017-00 Bolt, With Washer |
90119-10017-00 |
from US $9.07 |
||
|
23
|
23
90119-10013-00 Bolt, With Washer |
90119-10013-00 |
from US $9.07 |
||
|
24
|
24
60E-14623-00-00 Gasket, Exhaust Pipe |
60E-14623-00-00 |
from US $4.64 |
||
|
25
|
25
60E-14784-00-94 Pipe, Tail |
60E-14784-00-94 |
from US $64.78 |
||
|
26
|
26
6D3-1469W-00-00 Plate, Silencer 6 |
6D3-1469W-00-00 |
from US $41.17 |
||
| replacement | |||||
|
26
|
26
6D3-1469W-10-00 Plate, Silencer 6 |
6D3-1469W-10-00 |
from US $41.17 |
||
|
27
|
27
90105-06790-00 Bolt, Washer Based(4Eb) |
90105-06790-00 |
from US $1.98 |
||
| replacement | |||||
|
27
|
27
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.42 |
||
|
28
|
28
6BU-14752-00-94 Pipe, Outlet |
6BU-14752-00-94 |
from US $203.10 |
||
|
29
|
29
6B6-1475E-00-00 Pipe 2 |
6B6-1475E-00-00 |
from US $37.26 |
||
| replacement | |||||
|
29
|
29
6BU-1475E-00-00 Pipe 2 |
6BU-1475E-00-00 |
from US $46.55 |
||
|
30
|
30
6D3-1475F-00-00 Pipe 3 |
6D3-1475F-00-00 |
from US $34.20 |
||
| replacement | |||||
|
30
|
30
6BU-1475F-00-00 Pipe 3 |
6BU-1475F-00-00 |
from US $40.48 |
||
|
31
|
31
90450-99004-00 Hose Clamp Assy |
90450-99004-00 |
from US $8.78 |
||
|
32
|
32
90450-94001-00 Hose Clamp Assy |
90450-94001-00 |
from US $8.08 |
||
|
33
|
33
90450-99004-00 Hose Clamp Assy |
90450-99004-00 |
from US $8.78 |
||
|
34
|
34
90450-94001-00 Hose Clamp Assy |
90450-94001-00 |
from US $8.08 |
||
