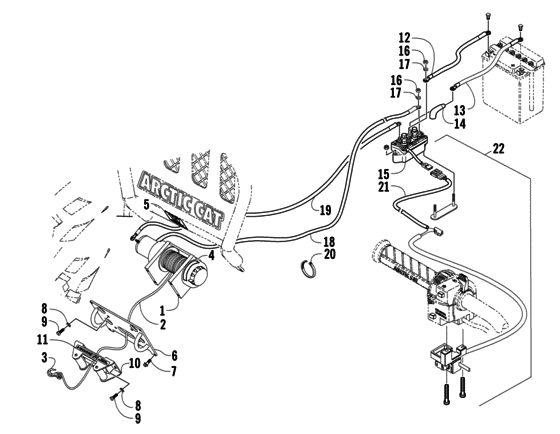

Winch assembly Diagram Arctic Cat ATV 650 650 V-Twin FIS
- Model code
- A2004ISR4BCAA
- Engine Capacity
- 650
- Year
- 2004
- Commercial Name
- 650 V-Twin FIS
- Sales region
- General
- Colour
- Cat Green
- Model
- ATV 650 V-Twin FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
0441-061 CableWinch |
0441-061 |
US $139.68 |
||
|
3
|
3
0441-426 HookWinch |
0441-426 |
US $59.55 |
||
|
4
|
4
0441-434 DecalWinch; warning |
0441-434 |
US $104.43 |
||
|
5
|
5
0411-433
Decal
|
0411-433 |
— | ||
|
6
|
6
1506-320 PlateWinch |
1506-320 |
US $120.58 |
||
|
7
|
7
0423-362 ScrewMachine |
0423-362 |
US $1.10 |
||
|
8
|
8
8051-247 WasherLock |
8051-247 |
US $2.95 |
||
|
9
|
9
8002-132 ScrewCap |
8002-132 |
US $4.80 |
||
|
10
|
10
0441-403 RollerWinch |
0441-403 |
US $47.22 |
||
|
11
|
11
0411-474 DecalWinch |
0411-474 |
US $215.21 |
||
|
12
|
12
0441-477 CableBlack; solenoid/battery |
0441-477 |
US $42.33 |
||
|
13
|
13
0441-478 CableRed; solenoid/battery |
0441-478 |
US $42.33 |
||
|
14
|
14
0441-060 BootTerminal |
0441-060 |
US $3.25 |
||
|
15
|
15
0409-041 Solenoidinc. 16-17 ; |
0409-041 |
US $139.53 |
||
| replacements | |||||
|
15
|
15
0409-066 Solenoidinc. 16-17 ; |
0409-066 |
US $141.38 |
||
|
15
|
15
040-9246 Kit,solenoid Replacementinc. 16-17 ; |
040-9246 |
US $129.25 |
||
|
16
|
16
8420-602
Nut
|
8420-602 |
— | ||
|
17
|
17
8451-122
Washer
|
8451-122 |
— | ||
|
18
|
18
0441-476 CableBlack - no. 1; winch/solenoid |
0441-476 |
US $69.65 |
||
|
19
|
19
0441-475 CableBlack - no. 2; winch/solenoid |
0441-475 |
US $60.27 |
||
|
20
|
20
0123-788 TieCable |
0123-788 |
US $2.90 |
||
|
21
|
21
0409-044 SwitchControl |
0409-044 |
US $99.95 |
||
|
22
|
22
0436-355 KitControl switch/solenoid; mounting |
0436-355 |
US $13.84 |
||
