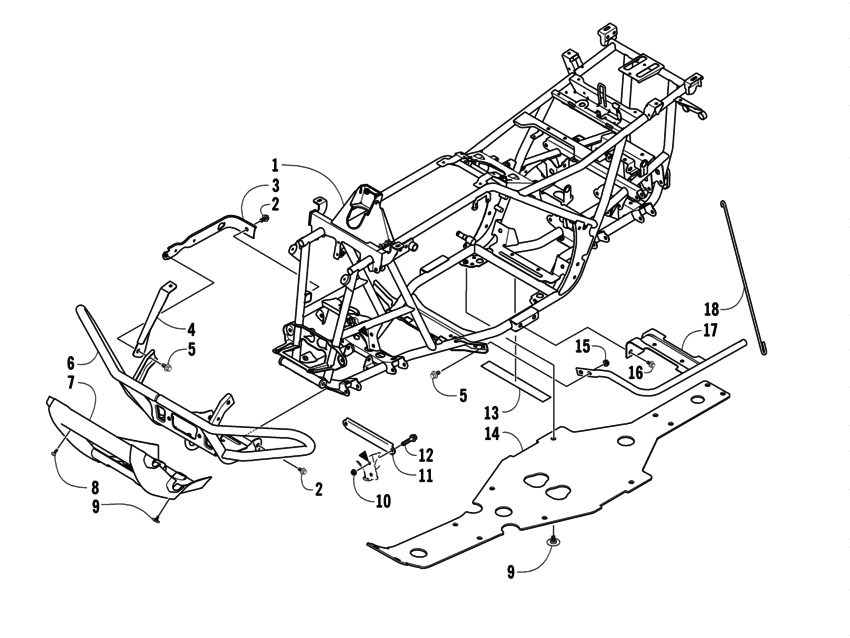

Frame and related parts Diagram Arctic Cat ATV 650 650 H1 FIS
- Model code
- A2008IBS4BUSP
- Engine Capacity
- 650
- Year
- 2008
- Commercial Name
- 650 H1 FIS
- Sales region
- General
- Colour
- Black
- Model
- ATV 650 H1 FIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2506-675
Frame
|
2506-675 |
— | ||
|
2
|
2
8409-020 ScrewCap |
8409-020 |
US $7.44 |
||
|
3
|
3
1506-596 ChannelLeft; bumper mounting |
1506-596 |
US $32.27 |
||
|
3
|
3
0506-653 ChannelBumper mounting |
0506-653 |
US $28.18 |
||
| replacement | |||||
|
3
|
3
1506-596 ChannelLeft; bumper mounting |
1506-596 |
US $32.27 |
||
|
4
|
4
1506-562 BracketBumper - right; mounting |
1506-562 |
US $32.27 |
||
|
4
|
4
1506-563 BracketBumper - left; mounting |
1506-563 |
US $32.27 |
||
|
5
|
5
8408-816 ScrewCap |
8408-816 |
US $4.40 |
||
|
6
|
6
1506-855 Bumper |
1506-855 |
US $217.14 |
||
|
7
|
7
1406-360 GrilleBumper |
1406-360 |
US $54.50 |
||
|
8
|
8
0423-419 ScrewMachine |
0423-419 |
US $6.70 |
||
|
9
|
9
0423-101 ScrewBody |
0423-101 |
US $14.40 |
||
|
10
|
10
8428-002 NutLock |
8428-002 |
US $27.20 |
||
|
11
|
11
1506-429 BraceA-arm |
1506-429 |
US $21.13 |
||
| replacement | |||||
|
11
|
11
2516-852 BraceA-arm |
2516-852 |
US $48.43 |
||
|
12
|
12
8409-025 ScrewCap |
8409-025 |
US $2.13 |
||
|
13
|
13
0406-289 PadUpper rear; battery |
0406-289 |
US $2.53 |
||
|
14
|
14
2406-029 PanelBelly |
2406-029 |
US $91.78 |
||
|
15
|
15
8424-802 Nut |
8424-802 |
US $0.74 |
||
|
16
|
16
8409-016 ScrewCap |
8409-016 |
US $8.52 |
||
|
17
|
17
1506-380 FootrestRight |
1506-380 |
US $84.80 |
||
|
17
|
17
1506-379 FootrestLeft |
1506-379 |
US $84.80 |
||
|
18
|
18
2506-423 RodSupport |
2506-423 |
US $12.62 |
||
