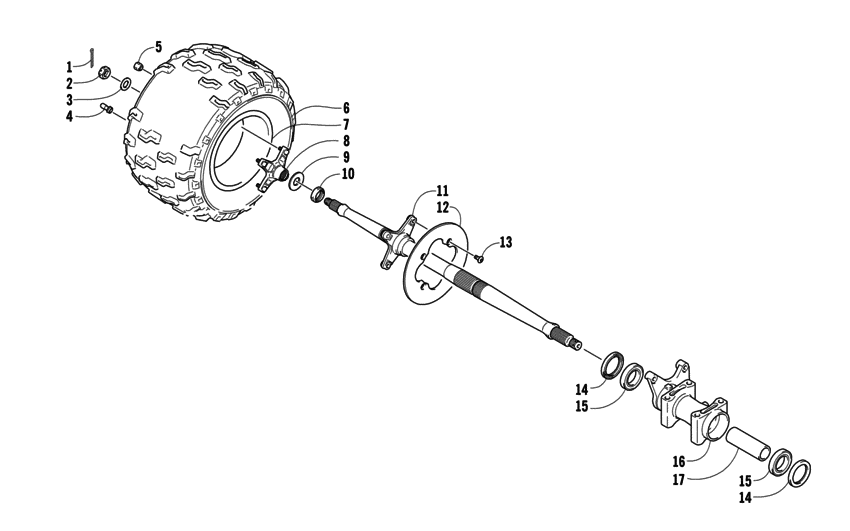

Right rear wheel assembly Diagram Arctic Cat DVX 400 DVX
- Model code
- A2007DVI2AUSX
- Engine Capacity
- 400
- Year
- 2007
- Commercial Name
- 400 DVX
- Sales region
- General
- Colour
- Tony Stewart Edition
- Model
- ATV 400 DVX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3423-609 PinCotter |
3423-609 |
US $4.72 |
||
|
2
|
2
3423-667 NutHub |
3423-667 |
US $6.05 |
||
|
3
|
3
3423-685 Washer |
3423-685 |
US $7.86 |
||
|
4
|
4
3406-008 Valve assembly |
3406-008 |
US $21.13 |
||
|
5
|
5
3423-788 Nut |
3423-788 |
US $8.35 |
||
|
6
|
6
3406-072 TireRear |
3406-072 |
US $256.71 |
||
|
7
|
7
3406-160 WheelRear |
3406-160 |
US $533.48 |
||
|
8
|
8
3406-166 HubWheel |
3406-166 |
US $352.51 |
||
|
9
|
9
3423-687 Washer |
3423-687 |
US $7.26 |
||
|
10
|
10
3423-849 NutRear axle |
3423-849 |
US $47.30 |
||
|
11
|
11
3446-420 AxleRear |
3446-420 |
US $878.01 |
||
| replacement | |||||
|
11
|
11
3446-429 AxleRear |
3446-429 |
US $771.51 |
||
|
12
|
12
3406-079 DiscBrake |
3406-079 |
US $170.48 |
||
|
13
|
13
3423-649 BoltBrake disc |
3423-649 |
US $4.46 |
||
|
14
|
14
3406-099 SealDust |
3406-099 |
US $51.22 |
||
|
15
|
15
3406-092 BearingRear axle |
3406-092 |
US $65.71 |
||
|
16
|
16
3406-134 HousingRear axle bearing |
3406-134 |
US $330.53 |
||
|
17
|
17
3406-127 SpacerRear axle bearing |
3406-127 |
US $80.94 |
||
