Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 3509-008 Harness Main	3509-008	US $679.25
2	2 3423-731 Clamp	3423-731	US $6.05
3	3 3402-237 Clamp Breather hose	3402-237	US $6.05
4	4 3423-732 Clamp	3423-732	US $6.05
5	5 0693-564 Clamp	0693-564	US $4.33
6	6 3423-733 Clamp	3423-733	US $6.05
7	7 3008-044 Cable tie	3008-044	US $2.85
8	8 3509-009 Switch Ignition	3509-009	US $151.29
9	9 3409-045 Switch Brakelight	3409-045	US $160.01
10	10 3423-736 Spring	3423-736	US $8.61
11	11 3409-040 Fuse box Cooling fan inc. 12 ;	3409-040	US $42.33
12	12 3530-043 Fuse 10a	3530-043	US $3.53
13	13 3409-007 Key Blank; ignition Type C ;	3409-007	US $29.39
13	13 3409-011 Key D series; blank; ignition Type D ;	3409-011	US $29.39
13	13 3409-012 Key E series; 2x4; 250; blank; ignition Type E ;	3409-012	US $29.39
13	13 3409-013 Key F series; 2x4; 250; blank; ignition Type F ;	3409-013	US $29.39
14	14 0409-013 Cover Key	0409-013	US $8.21
15	15 3423-777 Clamp	3423-777	US $11.16
16	16 3423-778 Clamp	3423-778	US $18.32

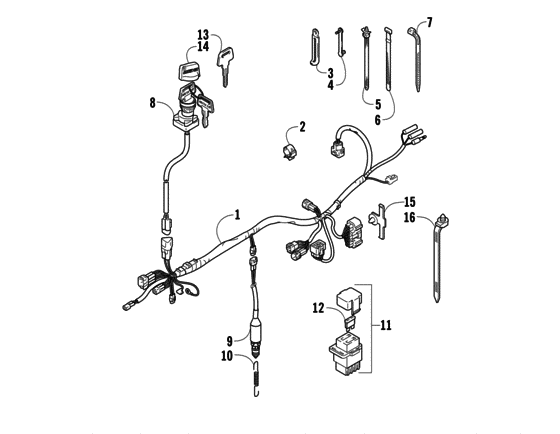

Wiring harness assembly Diagram Arctic Cat DVX 400 DVX Tony Stewart Edition General 10970687-697301
