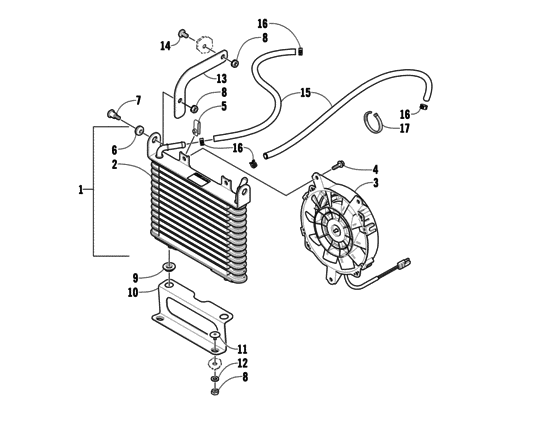

Cooling assembly Diagram Arctic Cat TRV 400 TRV 400 H1
- Model code
- A2009TBG4BOSR
- Engine Capacity
- 400
- Year
- 2009
- Commercial Name
- TRV 400 H1
- Sales region
- General
- Colour
- Red
- Model
- TRV 400 H1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0513-026 CoolerAssembly; oil inc. 2-6 ; |
0513-026 |
US $558 |
||
|
2
|
2
0413-224 CoolerOil |
0413-224 |
US $431.83 |
||
|
3
|
3
0413-145 FanCooling |
0413-145 |
US $248.46 |
||
|
4
|
4
8408-616 ScrewCap |
8408-616 |
US $2.96 |
||
|
5
|
5
0423-031 NutSpeed |
0423-031 |
US $6.70 |
||
|
6
|
6
0423-030 Grommet |
0423-030 |
US $5.74 |
||
|
7
|
7
0423-484 ScrewShoulder |
0423-484 |
US $14.52 |
||
|
8
|
8
0623-038 Nut w/washer |
0623-038 |
US $2.15 |
||
|
9
|
9
0423-028 BushingStem |
0423-028 |
US $6.42 |
||
|
10
|
10
0513-021 BracketOil cooler - lower; mounting |
0513-021 |
US $23.76 |
||
|
11
|
11
0423-101 ScrewBody |
0423-101 |
US $14.40 |
||
|
12
|
12
8050-222 Washer |
8050-222 |
US $17.60 |
||
|
13
|
13
0513-020 BracketOil cooler - upper; mounting |
0513-020 |
US $11.25 |
||
|
14
|
14
8476-612 ScrewMachine |
8476-612 |
US $5.36 |
||
|
15
|
15
0410-044 HoseOil |
0410-044 |
US $50.45 |
||
|
16
|
16
0423-098 ClampHose |
0423-098 |
US $3.78 |
||
|
17
|
17
0123-903 TieCable |
0123-903 |
US $7.40 |
