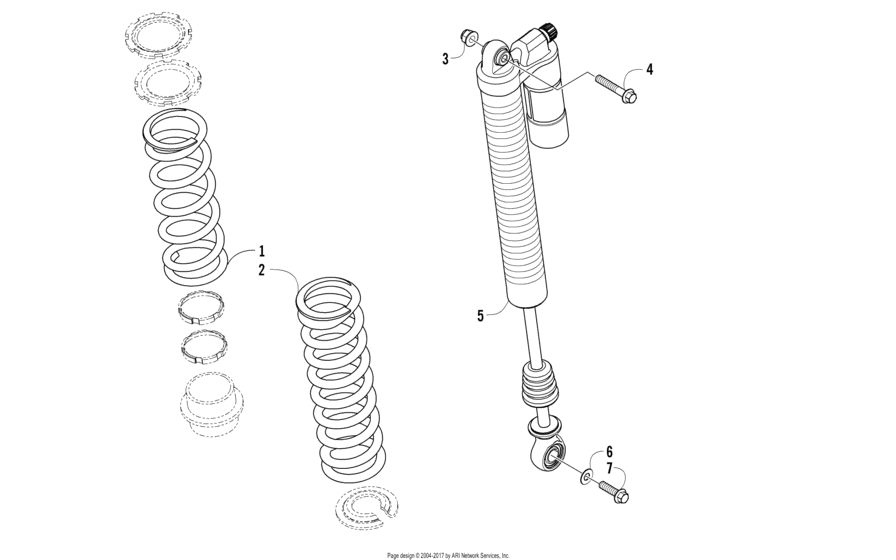

Rear Suspension Shock Assembly (98539) Diagram Arctic Cat WILDCAT
- Model code
- U2013W3W1PUSE
- Engine Capacity
- 1000
- Year
- 2013
- Colour
- Metallic Red
- Model
- Wildcat 1000
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0504-699 Spring, rear - tender - ptd whiteWhite |
0504-699 |
US $115.10 |
||
|
2
|
2
0504-698 Spring, rear - main - ptd whiteWhite |
0504-698 |
US $79.74 |
||
|
3
|
3
8428-002 NutLock White |
8428-002 |
US $27.20 |
||
|
4
|
4
8409-060 ScrewCap White |
8409-060 |
US $4.98 |
||
|
5
|
5
0404-363 Shock,rear (fox)White |
0404-363 |
US $818 |
||
|
6
|
6
0623-664 WasherWhite |
0623-664 |
US $8.10 |
||
|
7
|
7
8409-030 ScrewCap White |
8409-030 |
US $16.65 |
