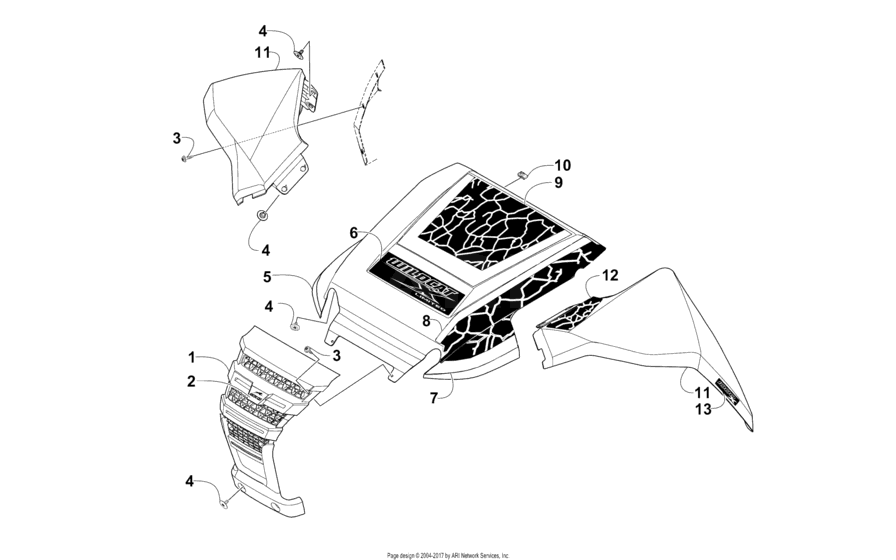

Front Panel Assembly (300444) Diagram Arctic Cat WILDCAT Wildcat 4X Limited
- Model code
- U2014WGW1POSE
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat 4X Limited
- Colour
- Red
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2416-685 Grille,frontBlack |
2416-685 |
US $44.38 |
||
|
2
|
2
2411-943 Decal,grill-frontBlack |
2411-943 |
US $17.42 |
||
|
3
|
3
0423-609 ScrewGas tank mount Black |
0423-609 |
US $5.36 |
||
|
4
|
4
0423-101 ScrewBody Black |
0423-101 |
US $14.40 |
||
|
5
|
5
5506-151 Hood,vm red-ptdRed |
5506-151 |
US $407.07 |
||
|
6
|
6
4411-001 DECAL,HOOD CREST-VRRed |
4411-001 |
US $17.42 |
||
|
7
|
7
3411-986 DECAL,HOOD FWD RH-VRRight |
3411-986 |
US $15.82 |
||
|
7
|
7
3411-987 DECAL,HOOD FWD LH-VRLeft |
3411-987 |
US $15.82 |
||
|
8
|
8
3411-988 DECAL,HOOD MID RH-VRRight |
3411-988 |
US $41.36 |
||
|
8
|
8
3411-989 DECAL,HOOD MID LH-VRLeft |
3411-989 |
US $41.36 |
||
|
9
|
9
4411-018 DECAL,HOOD CREST RR-VRRear |
4411-018 |
US $78.74 |
||
|
10
|
10
0423-577 ClipU-nut Rear |
0423-577 |
US $2.90 |
||
|
11
|
11
5506-140 Panel,fender-frt-rh vm red-ptdRight - Red |
5506-140 |
US $241.39 |
||
|
11
|
11
5506-141 Panel,fender-frt-lh vm red-ptdLeft - Red |
5506-141 |
US $241.39 |
||
|
12
|
12
3411-990 DECAL,FRONT FENDER RH-VRRight - Red |
3411-990 |
US $15.82 |
||
|
12
|
12
3411-991 DECAL,FRONT FENDER LH-VRLeft - Red |
3411-991 |
US $15.82 |
||
|
13
|
13
4411-019 DECAL,FENDER SIDE-VRLeft - Red |
4411-019 |
US $7.06 |
