Rear Suspension Shock Assembly (300454) Diagram Arctic Cat WILDCAT Wildcat 4X Limited
- Model code
- U2015WGW1PUSC
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat 4X Limited
- Colour
- White
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?

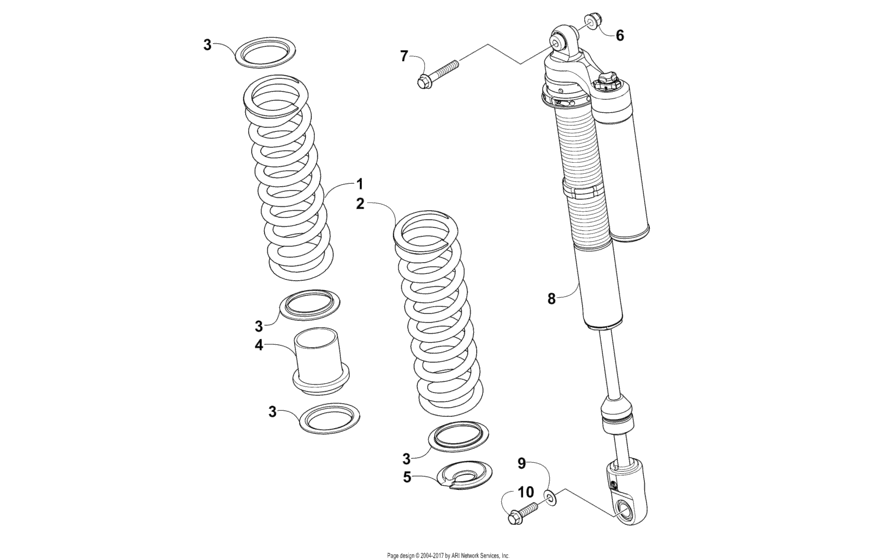

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0504-865 SPRING,REAR TENDER-BLKUpper - Black |
0504-865 |
US $195.92 |
||
|
2
|
2
0504-881 SPRING,REAR MAIN-BLKLower - Black |
0504-881 |
US $195.92 |
||
|
3
|
3
0404-417 SPACER,SPRING 2.5" IDLower - Black |
0404-417 |
US $35.30 |
||
|
4
|
4
0403-414 COUPLER, SPRING 10MM X 55MMLower - Black |
0403-414 |
US $23.76 |
||
|
5
|
5
0403-415 RETAINER,SPRING 2.0" BODYLower - Black |
0403-415 |
US $24.85 |
||
|
6
|
6
8428-002 NutLock Lower - Black |
8428-002 |
US $27.20 |
||
|
7
|
7
8409-060 ScrewCap Lower - Black |
8409-060 |
US $4.98 |
||
|
8
|
8
0404-421 SHOCK,REARManufacturer serviced only |
0404-421 |
US $1,059.11 |
||
| replacement | |||||
|
8
|
8
040-4704 Shock,rearManufacturer serviced only |
040-4704 |
US $1,059.11 |
||
|
9
|
9
0623-664 WasherManufacturer serviced only |
0623-664 |
US $8.10 |
||
|
10
|
10
8409-030 ScrewCap Manufacturer serviced only |
8409-030 |
US $16.65 |
||
