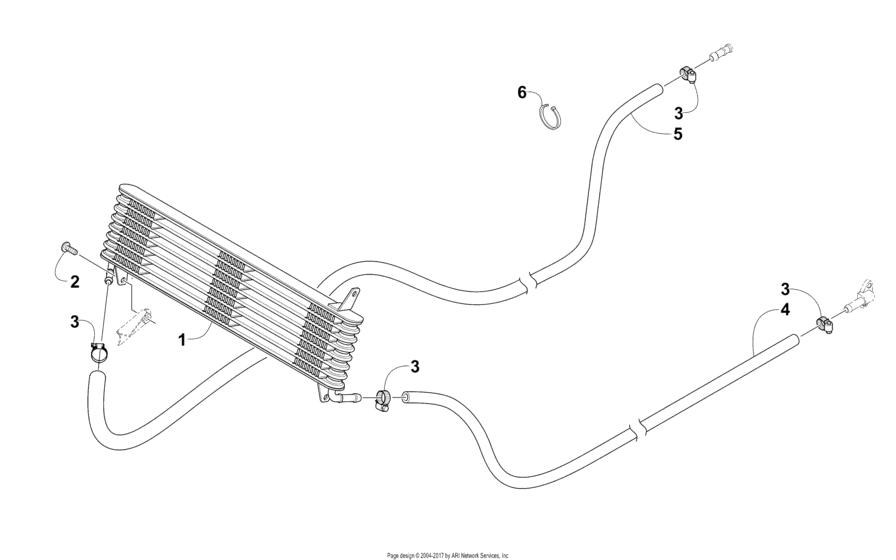

Oil Cooler Assembly (98603) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2014WFW1PUSE
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat 4X
- Colour
- Red
- Model
- Wildcat 4X
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0413-308 Cooler,oil (wc)47 x 16 x 5.5 |
0413-308 |
US $388.88 |
||
|
2
|
2
8476-616 ScrewCap 47 x 16 x 5.5 |
8476-616 |
US $2.90 |
||
|
3
|
3
0423-632 ClampHose 47 x 16 x 5.5 |
0423-632 |
US $13 |
||
|
4
|
4
0410-269 Hose,oil-9.52 id x 2439mm lgIn |
0410-269 |
US $92.88 |
||
|
5
|
5
0410-270 Hose,oil-9.52 id x 2898mm lgOut |
0410-270 |
US $95.95 |
||
|
6
|
6
0123-903 TieCable 11.5 in. |
0123-903 |
US $7.40 |
