	Description	OEM Part #	Price
1	1 0570-374 FUEL TANK Assembly	0570-374	US $265.63
2	2 1670-822 Grommet Assembly	1670-822	US $5.14
3	3 1670-787 Valve Check Assembly	1670-787	US $39.34
4	4 0423-898 Screw Machine Assembly	0423-898	US $4.44
5	5 2670-042 Plate Retaining Fuel Pump	2670-042	US $34.29
6	6 0570-402 PUMP,FUEL-ASSEMBLY Assembly \| (inc. 7)	0570-402	US $462.64
7	7 2670-235 Float,fuel pump-walbro 75-22 Assembly \| (inc. 7)	2670-235	US $13.92
8	8 0470-838 Seal Assembly \| (inc. 7)	0470-838	US $4.22
9	9 0570-384 LINE,FUEL Assembly \| (inc. 7)	0570-384	US $107.02
10	10 8476-616 Screw Cap Assembly \| (inc. 7)	8476-616	US $2.90
11	11 1623-675 Clamp Cable Assembly \| (inc. 7)	1623-675	US $12.80
12	12 0423-688 Clamp Hose Assembly \| (inc. 7)	0423-688	US $3.15
13	13 0410-070 Hose 25 ft; gasline 25 ft	0410-070	US $144.40
14	14 0123-788 Tie Cable 8 in.	0123-788	US $2.90
14	14 0123-903 Tie Cable 11.5 in.	0123-903	US $7.40
15	15 0470-438 Cap Gas Assembly \| (inc. 3)	0470-438	US $15.58
16	16 0109-733 Gasket Gas cap Assembly \| (inc. 3)	0109-733	US $4.58
17	17 8060-628 Rivet Assembly \| (inc. 3)	8060-628	US $18.10
18	18 0670-304 Ring Assembly \| (inc. 3)	0670-304	US $7.86
19	19 0123-802 Washer Assembly \| (inc. 3)	0123-802	US $1.16
20	20 0470-970 Neck,fill-remote Assembly \| (inc. 3)	0470-970	US $12.62
21	21 0624-390 Clamp Assembly \| (inc. 3)	0624-390	US $21.98
22	22 0410-283 HOSE,FILLER Assembly \| (inc. 3)	0410-283	US $72.67
23	23 1470-049 FOAM, FUEL TANK Assembly \| (inc. 3)	1470-049	US $1.54
24	24 0619-776 Conduit 5 ft; flexible 5 ft	0619-776	US $15.86

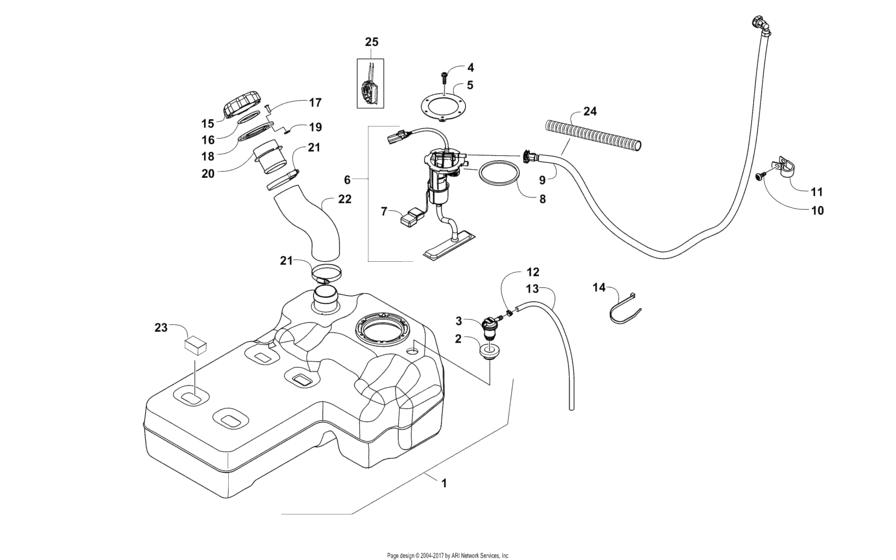

Gas Tank Assembly (300052) Diagram Arctic Cat WILDCAT Wildcat Trail Lime Green 16815664-861845
