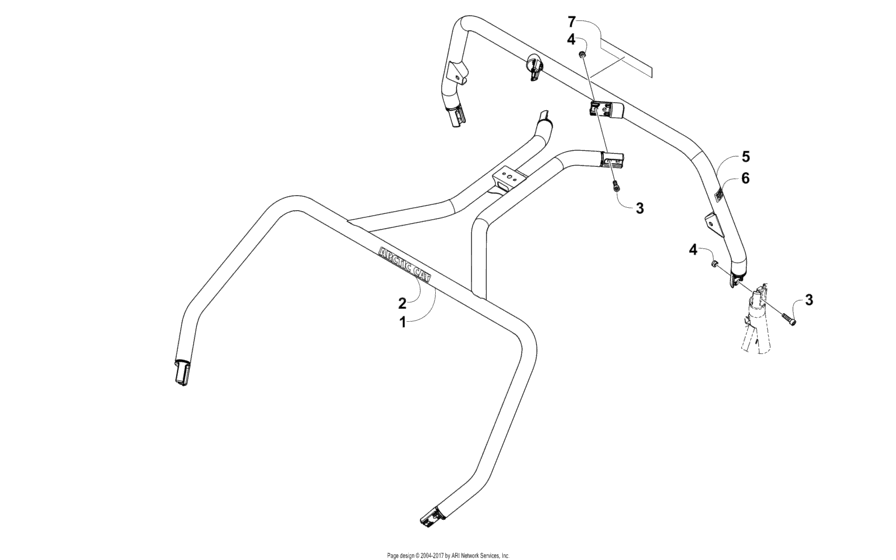

Rops Assembly (300007) Diagram Arctic Cat WILDCAT Wildcat Trail
- Model code
- U2014W5T2PUSZ
- Engine Capacity
- 1000
- Year
- 2014
- Commercial Name
- Wildcat Trail
- Colour
- Lime Green
- Model
- Wildcat Trail
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5506-123 CANOPY,FRONT HOOP-PTD BLKAssembly |
5506-123 |
US $298.98 |
||
| replacement | |||||
|
1
|
1
8506-094 Rops - Front AssemblyAssembly |
8506-094 |
US $338.37 |
||
|
2
|
2
0411-501 Decal"arctic cat" Assembly |
0411-501 |
US $10.48 |
||
|
3
|
3
1423-140 Screw,cap-hsh m10 x 1.25 x 35Assembly |
1423-140 |
US $9.60 |
||
|
4
|
4
1423-161 Nut,hex lock-nsl m10x1.25 gr 8 din 985Assembly |
1423-161 |
US $3.52 |
||
|
5
|
5
5506-607 ROPS W/ WARNING DECALSRear Assembly | (inc. 6) |
5506-607 |
US $269.18 |
||
| replacement | |||||
|
5
|
5
8506-099 Rops - Rear AssemblyRear Assembly | (inc. 6) |
8506-099 |
US $303.01 |
||
|
6
|
6
3411-970 DECAL,WARNING-ROPSROPS |
3411-970 |
US $9.30 |
||
|
7
|
7
4411-075 DECAL,WILDCAT-WHT/BLK (REAR CANOPY)ROPS |
4411-075 |
US $6.42 |
||
