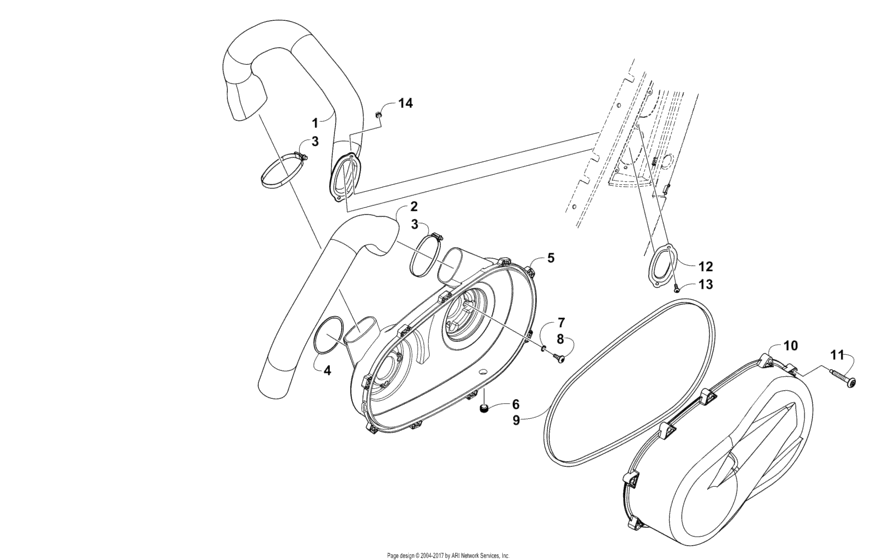

Case/belt Cooling And Clutch Cover Assemblies (300020) Diagram Arctic Cat WILDCAT Wildcat Trail XT
- Model code
- U2015WCT4CUSE
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat Trail XT
- Colour
- Red
- Model
- Wildcat Trail XT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0413-347 DUCT, CLUTCH-INLETLeft |
0413-347 |
US $102.99 |
||
|
2
|
2
0413-313 DUCT,CLUTCH-OUTLETLeft |
0413-313 |
US $243.41 |
||
|
3
|
3
0423-018 ClampLeft |
0423-018 |
US $8.43 |
||
|
4
|
4
0830-223 O-RING - #2-144Left |
0830-223 |
US $8.26 |
||
|
5
|
5
0806-173
COVER,CVT-ASSEMBLY
Assembly |
0806-173 |
— | ||
|
6
|
6
0806-160 PLUG,DRAINAssembly |
0806-160 |
US $5.23 |
||
|
7
|
7
0830-227 O-RING - #2-011Assembly |
0830-227 |
US $8.12 |
||
|
8
|
8
1423-220 SCREW,SHOULDER-M6 X 1.0 TAPTITEAssembly |
1423-220 |
US $17.04 |
||
|
9
|
9
0806-161 SEAL,CVT COVERAssembly |
0806-161 |
US $17.25 |
||
|
10
|
10
0806-141 COVER,CVT-OUTER (WC50)Assembly |
0806-141 |
US $71.66 |
||
|
11
|
11
1423-221 SCREW, M6X1.0 DOG-POINTAssembly |
1423-221 |
US $9.05 |
||
|
12
|
12
4406-606 PLATE,CLUTCH INTAKEAssembly |
4406-606 |
US $12.62 |
||
|
13
|
13
8468-620 ScrewMachine Assembly |
8468-620 |
US $0.88 |
||
|
14
|
14
0623-038 Nut w/washerAssembly |
0623-038 |
US $2.15 |
