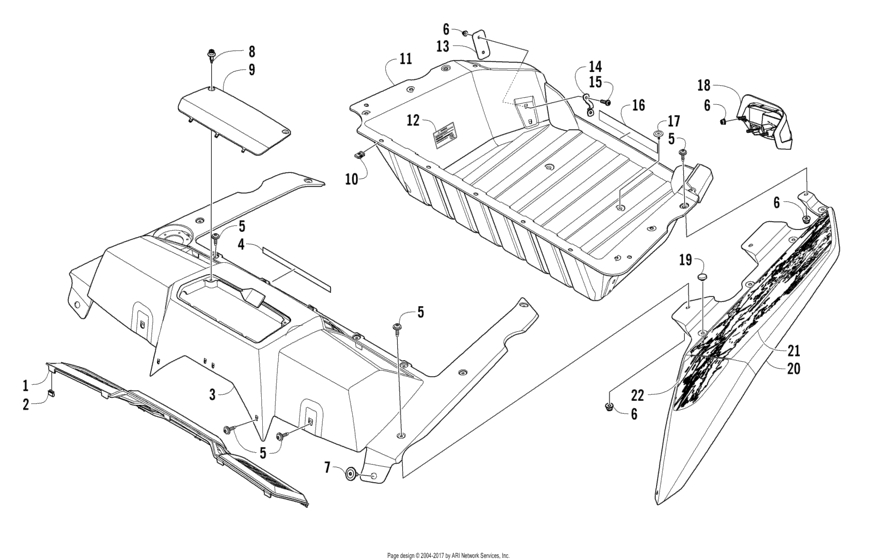

Cargo Box And Taillight Assembly (98626) Diagram Arctic Cat WILDCAT Wildcat X
- Model code
- U2013WSW1PUSE
- Engine Capacity
- 1000
- Year
- 2013
- Commercial Name
- Wildcat X
- Colour
- Red
- Model
- Wildcat X
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2416-956 Grille,rearAssembly |
2416-956 |
US $48.43 |
||
|
2
|
2
0123-987 ClipAssembly |
0123-987 |
US $17.60 |
||
|
3
|
3
5506-154 Panel,cover-rear vm red-ptdRed |
5506-154 |
US $736.42 |
||
|
3
|
3
5506-283 Panel,cover-rear team arctic grn-ptdGreen |
5506-283 |
US $736.42 |
||
|
4
|
4
3411-369 Decal,graphic-dual fan-vrGreen |
3411-369 |
US $5.07 |
||
|
5
|
5
0423-609 ScrewGas tank mount Green |
0423-609 |
US $5.36 |
||
|
6
|
6
8427-602 NutGreen |
8427-602 |
US $1.45 |
||
|
7
|
7
1423-107 Screw, shoulder - m6 x 1.0Green |
1423-107 |
US $8.43 |
||
|
8
|
8
0423-535 RivetReinstallable Green |
0423-535 |
US $9.05 |
||
|
9
|
9
2416-825 Panel,access-radiator blkGreen |
2416-825 |
US $22.67 |
||
|
10
|
10
0423-577 ClipU-nut Green |
0423-577 |
US $2.90 |
||
|
11
|
11
4406-167 Box,cargo-rear (w/decals)(inc. 11) |
4406-167 |
US $237.34 |
||
|
12
|
12
4411-791 DECAL,WARNING-CARGOCargo Box |
4411-791 |
US $7.06 |
||
|
13
|
13
2416-573 Bracket, cargo plateCargo Box |
2416-573 |
US $5.28 |
||
|
14
|
14
4506-634 Bracket, cargo strap-ptd blackCargo Box |
4506-634 |
US $8.38 |
||
|
15
|
15
8468-625 ScrewMachine Cargo Box |
8468-625 |
US $4.40 |
||
|
16
|
16
2411-944 Decal,rear-flagCargo Box |
2411-944 |
US $27.22 |
||
|
17
|
17
1423-109 Screw,self tap-tstrh m5x0.8x16mmCargo Box |
1423-109 |
US $15.12 |
||
|
18
|
18
0509-056 Taillight,rh-led assy (012 wc)Right |
0509-056 |
US $157.54 |
||
|
18
|
18
0509-057 Taillight,lh-led assy (012 wc)Left |
0509-057 |
US $157.54 |
||
|
19
|
19
0406-877 BumperFront; seat Left |
0406-877 |
US $4.85 |
||
|
20
|
20
5506-148 Panel,fender-rr-rh slvr dlr wht-ptdRight - White |
5506-148 |
US $194.75 |
||
|
20
|
20
5506-149 Panel,fender-rr-lh slvr dlr wht-ptdLeft - White |
5506-149 |
US $241.39 |
||
|
21
|
21
3411-360 Decal,fender-rear-upr-rh-vrRight |
3411-360 |
US $26.75 |
||
|
21
|
21
3411-361 Decal,fender-rear-upr-lh-vrLeft |
3411-361 |
US $31.26 |
||
|
22
|
22
3411-362 Decal,fender-rear-lwr-rh-vrFront Right |
3411-362 |
US $49.08 |
||
|
22
|
22
3411-363 Decal,fender-rear-lwr-lh-vrFront Left |
3411-363 |
US $56.51 |
