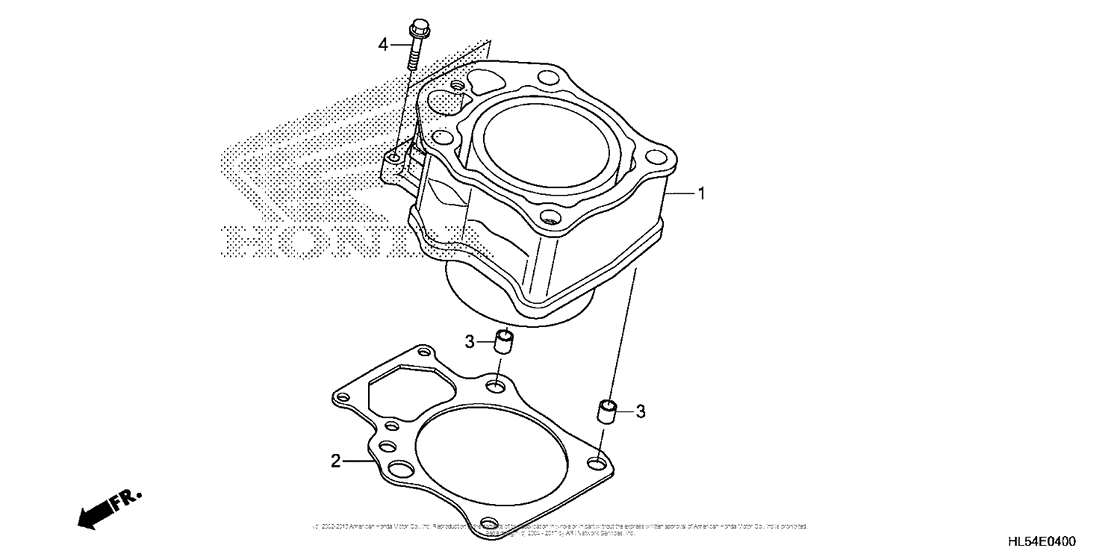

Cylinder Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-HR0-F00 Cylinder |
12100-HR0-F00 |
from US $473.28 |
||
|
2
|
2
12191-HR0-F01 Gasket, cyl hd |
12191-HR0-F01 |
from US $13.02 |
||
|
3
|
3
94301-12160 Pin aDOWEL, 12X16 |
94301-12160 |
from US $1.04 |
||
|
4
|
4
95701-0603200 Bolt, flange, 6x32 |
95701-0603200 |
from US $0.59 |
