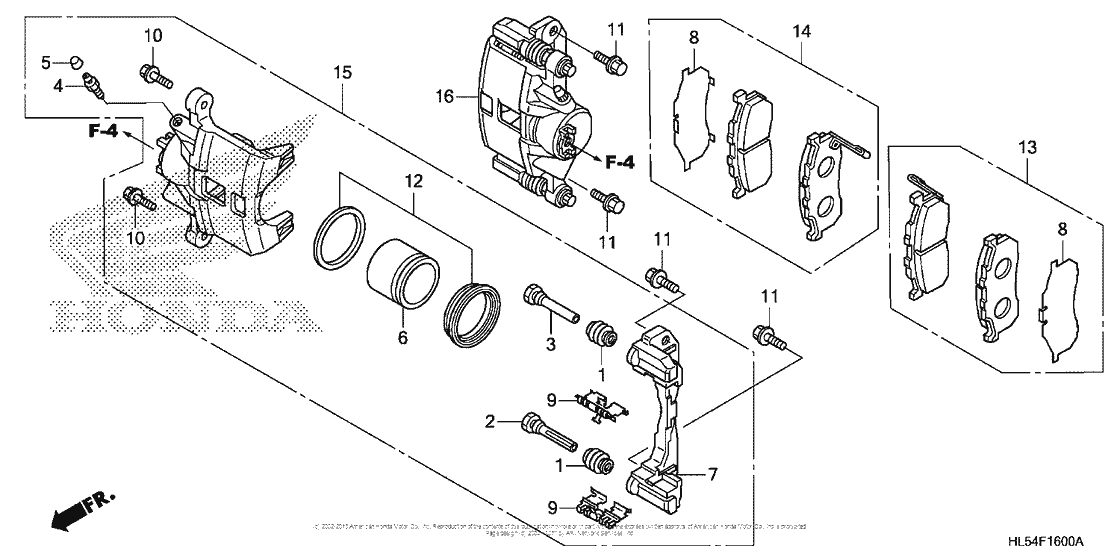

Front Brake Caliper Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43234-S04-003 CoverDUST |
43234-S04-003 |
from US $2.74 |
||
|
2
|
2
43235-S84-A51 Pin a |
43235-S84-A51 |
from US $7.25 |
||
|
3
|
3
43262-S84-A51 Pin b |
43262-S84-A51 |
from US $7.25 |
||
|
4
|
4
43352-SM4-951 ScrewBLEEDER |
43352-SM4-951 |
from US $3.26 |
||
|
5
|
5
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
6
|
6
45216-S5A-003 Piston |
45216-S5A-003 |
from US $30.19 |
||
|
7
|
7
45220-S2K-013 Bracket, caliper |
45220-S2K-013 |
from US $49.28 |
||
|
8
|
8
45228-SF4-023 Shim, brake pad |
45228-SF4-023 |
US $10.03 |
||
|
9
|
9
45237-S2K-003 Retainer |
45237-S2K-003 |
from US $3.78 |
||
|
10
|
10
45240-SC2-003 BoltFLANGE, 8X22 |
45240-SC2-003 |
from US $3.03 |
||
|
11
|
11
90108-HL1-A00 Bolt, caliper mount |
90108-HL1-A00 |
from US $2.31 |
||
|
12
|
12
06450-HL1-A01 Seal set, piston |
06450-HL1-A01 |
from US $12.60 |
||
|
13
|
13
06451-HL3-A00 Pad set, l. fr |
06451-HL3-A00 |
from US $82.96 |
||
|
14
|
14
06452-HL3-A00 Pad set, r. fr |
06452-HL3-A00 |
from US $82.96 |
||
|
15
|
15
45018-S3A-013 Caliper sub-assy. |
45018-S3A-013 |
from US $221.44 |
||
|
16
|
16
45019-S3A-013 Caliper sub-assy. |
45019-S3A-013 |
from US $221.44 |
