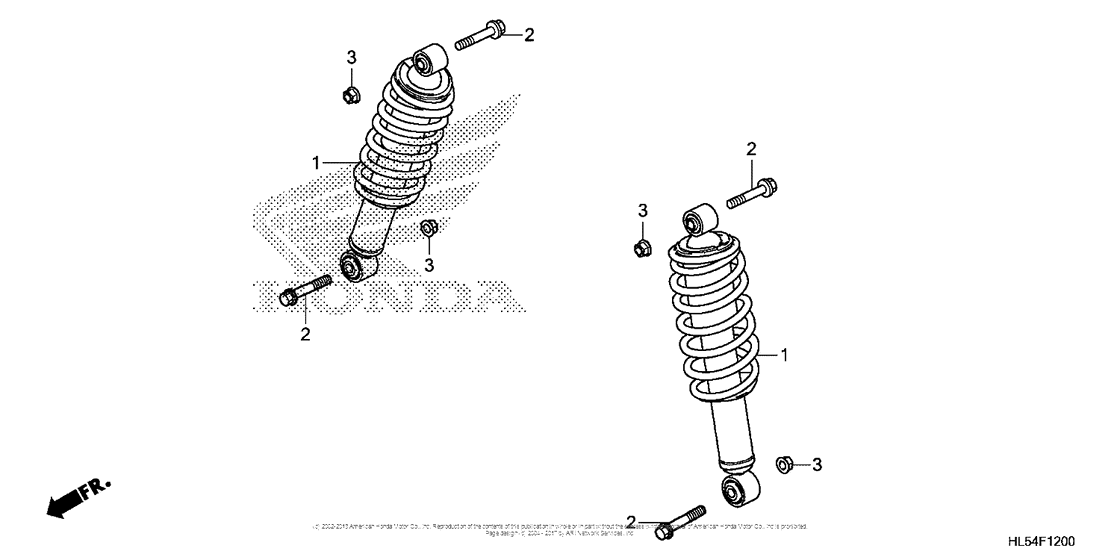

Front Shock Absorber Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-HL5-A01 CUSHION ASSY., FR. |
51400-HL5-A01 |
US $136.82 |
||
|
2
|
2
90120-HC4-000 Bolt, flange (10x50) |
90120-HC4-000 |
from US $4 |
||
|
3
|
3
90305-HC0-770 Nut, self-lock, 10mm |
90305-HC0-770 |
from US $2.66 |
