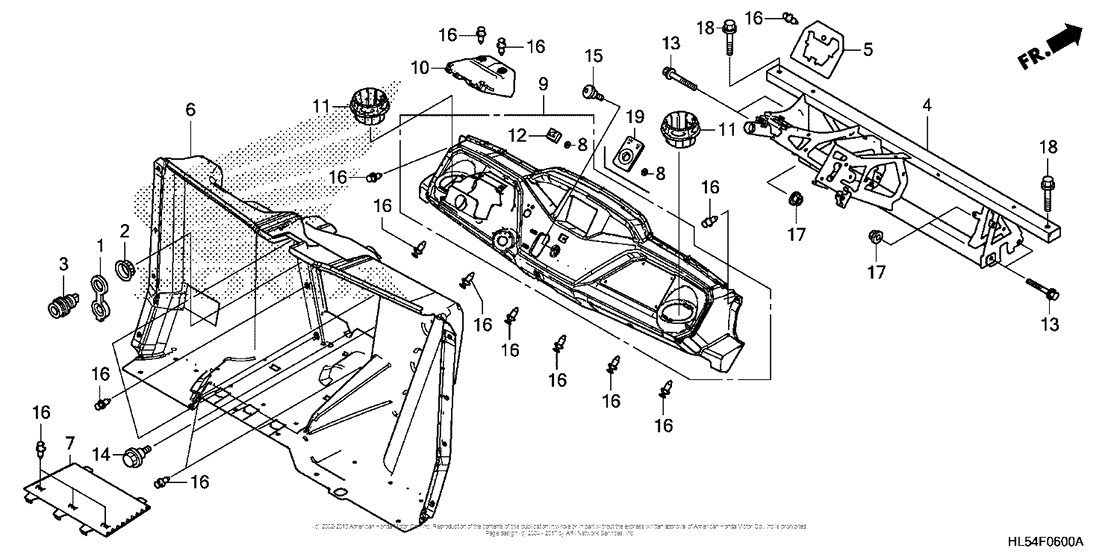

Instrument Panel Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31652-HP0-A01 Cap |
31652-HP0-A01 |
US $3.40 |
||
|
2
|
2
31653-HP0-A01 Nut |
31653-HP0-A01 |
from US $1.92 |
||
|
3
|
3
31655-HP0-A01 Socket, accessory |
31655-HP0-A01 |
US $29.89 |
||
|
4
|
4
53210-HL5-A00 FRAME |
53210-HL5-A00 |
US $406.50 |
||
|
5
|
5
53225-HL5-A00 PLATE, SPLASH GUARD |
53225-HL5-A00 |
US $19.48 |
||
|
6
|
6
64100-HL5-A00ZA CVR, FR. FLOOR *NH1* |
64100-HL5-A00ZA |
US $84.25 |
||
|
7
|
7
64101-HL5-A00ZA PLATE, FR. *NH1* |
64101-HL5-A00ZA |
US $8.64 |
||
|
8
|
8
64206-MJ0-000 Nut, speed (4mm) |
64206-MJ0-000 |
from US $2.15 |
||
|
9
|
9
68100-HL5-A00ZA PANEL ASSY. *NH1* |
68100-HL5-A00ZA |
US $245.23 |
||
|
10
|
10
68102-HL5-A00ZA COVER *NH1* |
68102-HL5-A00ZA |
US $8.99 |
||
|
11
|
11
68106-HL1-A00 Holder, drink |
68106-HL1-A00 |
US $8.42 |
||
|
12
|
12
86150-HN8-004 Emblem, product |
86150-HN8-004 |
from US $7.99 |
||
|
13
|
13
90005-PWR-000 BoltFLANGE, 8X60 |
90005-PWR-000 |
from US $1.75 |
||
|
14
|
14
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
15
|
15
90119-MEW-920 Screw, pan (6x11) |
90119-MEW-920 |
from US $2.11 |
||
|
16
|
16
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $3.11 |
||
|
17
|
17
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
18
|
18
95701-100-500-0 BoltFLANGE, 10X50 |
95701-100-500-0 |
from US $0.93 |
