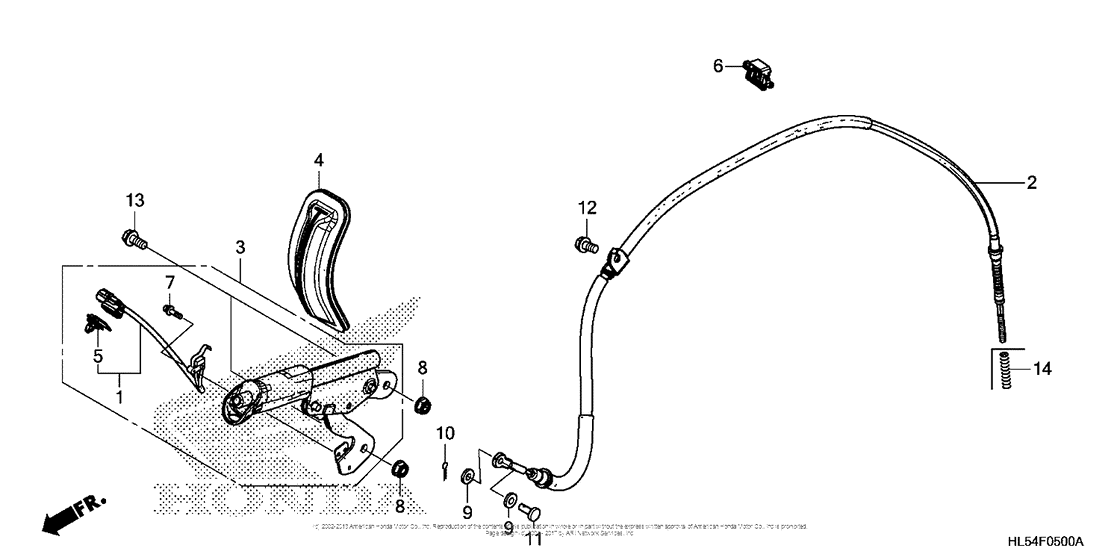

Parking Brake Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35370-HL3-A00 Switch, parking |
35370-HL3-A00 |
from US $26.38 |
||
|
2
|
2
45460-HL5-A01 CABLE, PARKING BRAKE |
45460-HL5-A01 |
US $47.79 |
||
|
3
|
3
47105-HL3-A00 Lever, hand brake |
47105-HL3-A00 |
from US $92.48 |
||
|
4
|
4
47160-HL3-A00 Rubber, hand brake |
47160-HL3-A00 |
US $12.10 |
||
|
5
|
5
91565-S3Y-003 ClipCOUPLER |
91565-S3Y-003 |
from US $1.61 |
||
|
6
|
6
91599-TZ5-H01 CLAMP, FUEL PIPE |
91599-TZ5-H01 |
US $2.53 |
||
|
7
|
7
93892-030-100-8 Screw-washer, 3x10 |
93892-030-100-8 |
from US $0.44 |
||
|
8
|
8
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
9
|
9
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
10
|
10
94201-20120 PinSPLIT, 2.0X12 |
94201-20120 |
from US $0.37 |
||
|
11
|
11
9501553000 Pin, joint |
9501553000 |
from US $1.48 |
||
|
12
|
12
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
13
|
13
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
