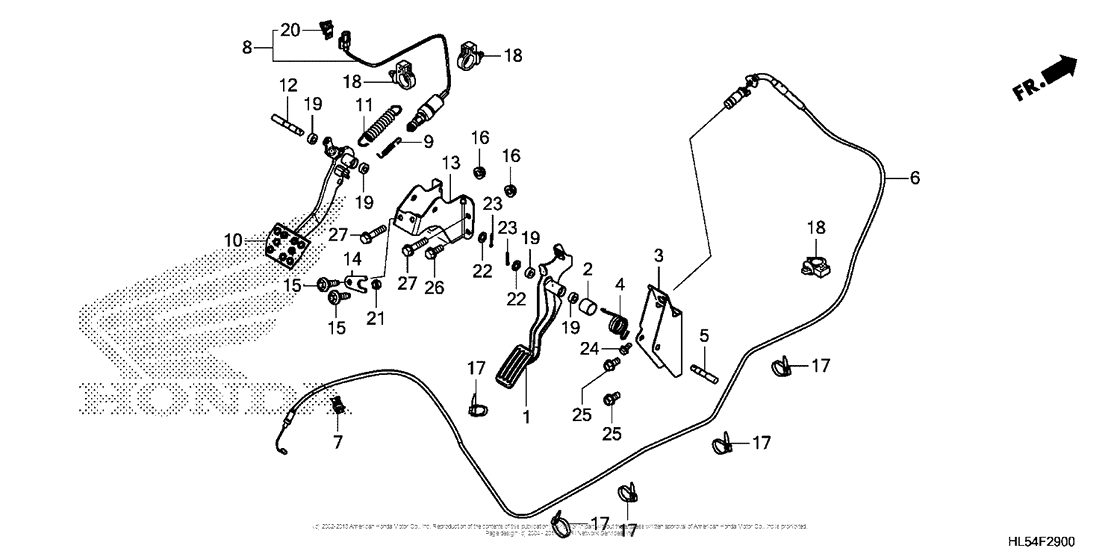

Pedal Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17810-HL5-A00 PEDAL, ACCELERATOR |
17810-HL5-A00 |
US $24.63 |
||
|
2
|
2
17811-HL1-A00 Collar |
17811-HL1-A00 |
from US $3.85 |
||
|
3
|
3
17820-HL5-A00 STAY |
17820-HL5-A00 |
US $28.82 |
||
|
4
|
4
17830-HL5-A00 SPRING |
17830-HL5-A00 |
US $2.87 |
||
|
5
|
5
17840-HL3-A00 Shaft |
17840-HL3-A00 |
US $15.86 |
||
|
6
|
6
17910-HL5-A00 CABLE, THROTTLE |
17910-HL5-A00 |
US $50.20 |
||
|
7
|
7
32171-GJ1-003 Clip, wire harness |
32171-GJ1-003 |
from US $2.22 |
||
|
8
|
8
35350-HL3-A01 Switch assy., stop |
35350-HL3-A01 |
from US $41.48 |
||
|
9
|
9
35357-KR3-670 Spring, stop switch |
35357-KR3-670 |
from US $4 |
||
|
10
|
10
46510-HL5-A00 PEDAL, BRAKE |
46510-HL5-A00 |
US $39.15 |
||
|
11
|
11
46514-HL1-A00 Spring, brake pedal |
46514-HL1-A00 |
US $11.29 |
||
|
12
|
12
46550-HL3-A00 Shaft, brake pivot |
46550-HL3-A00 |
US $23.29 |
||
|
13
|
13
46560-HL5-A00 STAY, BRAKE PEDAL |
46560-HL5-A00 |
US $9.42 |
||
|
14
|
14
46561-HL1-A00 Plate, adjuster nut |
46561-HL1-A00 |
US $5.85 |
||
|
15
|
15
90106-SJC-000 Bolt (8x30) |
90106-SJC-000 |
US $2.36 |
||
|
16
|
16
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
17
|
17
90651-MA6-720 BandHARNESS |
90651-MA6-720 |
from US $3.26 |
||
|
18
|
18
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
19
|
19
91259-VM0-000 Dust,10x16x4.5 |
91259-VM0-000 |
from US $5.14 |
||
|
20
|
20
91565-S3Y-003 ClipCOUPLER |
91565-S3Y-003 |
from US $1.61 |
||
|
21
|
21
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
22
|
22
94102-10800 WasherPLAIN, 10MM |
94102-10800 |
from US $0.44 |
||
|
23
|
23
94201-30180 PinSPLIT, 3.0X18 |
94201-30180 |
from US $0.37 |
||
|
24
|
24
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
25
|
25
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
26
|
26
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
|
27
|
27
95701-0804000 Bolt, flange, 8x40 |
95701-0804000 |
from US $0.74 |
