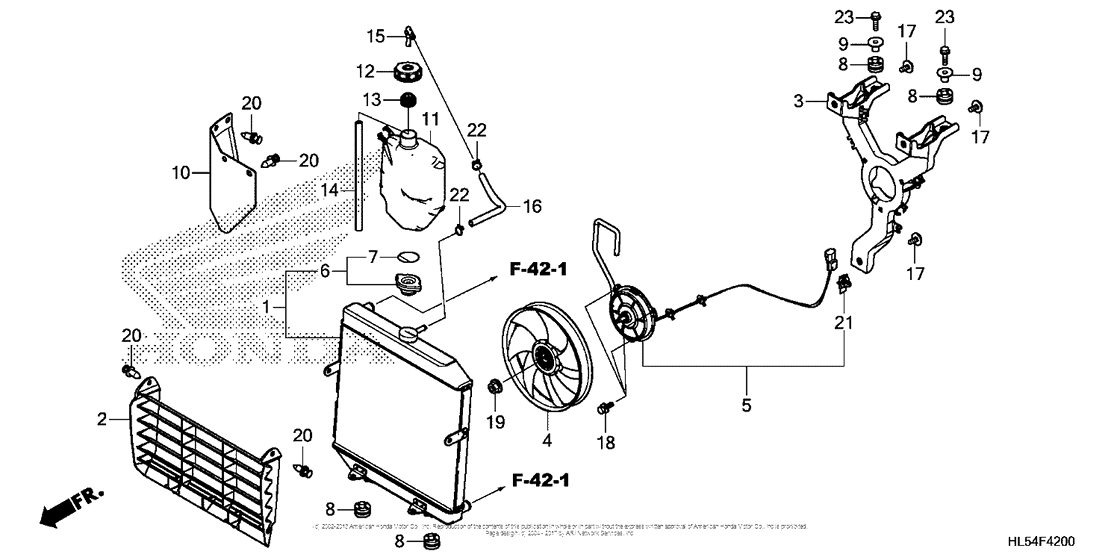

Radiator Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19010-HL5-A01 Radiator |
19010-HL5-A01 |
US $282.61 |
||
|
2
|
2
19014-HL5-A00 SHROUD, RADIATOR |
19014-HL5-A00 |
US $10.98 |
||
|
3
|
3
19015-HL5-A01 STAY, FAN |
19015-HL5-A01 |
US $32.90 |
||
|
4
|
4
19020-HN2-003 Fan, cooling |
19020-HN2-003 |
from US $64.19 |
||
|
5
|
5
19030-HL5-A02 MOTOR ASSY., FAN |
19030-HL5-A02 |
US $117.76 |
||
|
6
|
6
19037-GEE-710 Cap, radiator |
19037-GEE-710 |
from US $29.51 |
||
|
7
|
7
19046-PAA-A00 LabelRADIATOR CAP |
19046-PAA-A00 |
from US $1.55 |
||
|
8
|
8
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
9
|
9
19052-MGH-640 Collar |
19052-MGH-640 |
from US $2.03 |
||
|
10
|
10
19060-HL5-A00 SPLASH GUARD |
19060-HL5-A00 |
US $27.54 |
||
|
11
|
11
19101-RNA-A01 TankRESERVE |
19101-RNA-A01 |
US $16.39 |
||
|
12
|
12
19102-RNA-A00 CapRESERVE TANK |
19102-RNA-A00 |
from US $5.47 |
||
|
13
|
13
19103-HL1-A00 Seal, reserve tank |
19103-HL1-A00 |
from US $4.24 |
||
|
14
|
14
19103-RNA-A00 Hose aRESERVE TANK |
19103-RNA-A00 |
from US $1.41 |
||
|
15
|
15
19106-RSA-G00 JointRESERVE TANK |
19106-RSA-G00 |
from US $1.39 |
||
|
16
|
16
19111-HL3-A00 Hose b, reserve tank |
19111-HL3-A00 |
US $2.57 |
||
|
17
|
17
90107-HN8-003 Bolt-washer (6x15) |
90107-HN8-003 |
from US $2.46 |
||
|
18
|
18
90196-MBB-003 Bolt, flange (5mm) |
90196-MBB-003 |
from US $1.63 |
||
|
19
|
19
90315-MK3-003 Nut, serrate (5mm) |
90315-MK3-003 |
from US $2.15 |
||
|
20
|
20
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $3.11 |
||
|
21
|
21
91535-TA0-003 ClipCOUPLER (DARK BROWN) |
91535-TA0-003 |
from US $3.48 |
||
|
22
|
22
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
|
23
|
23
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
