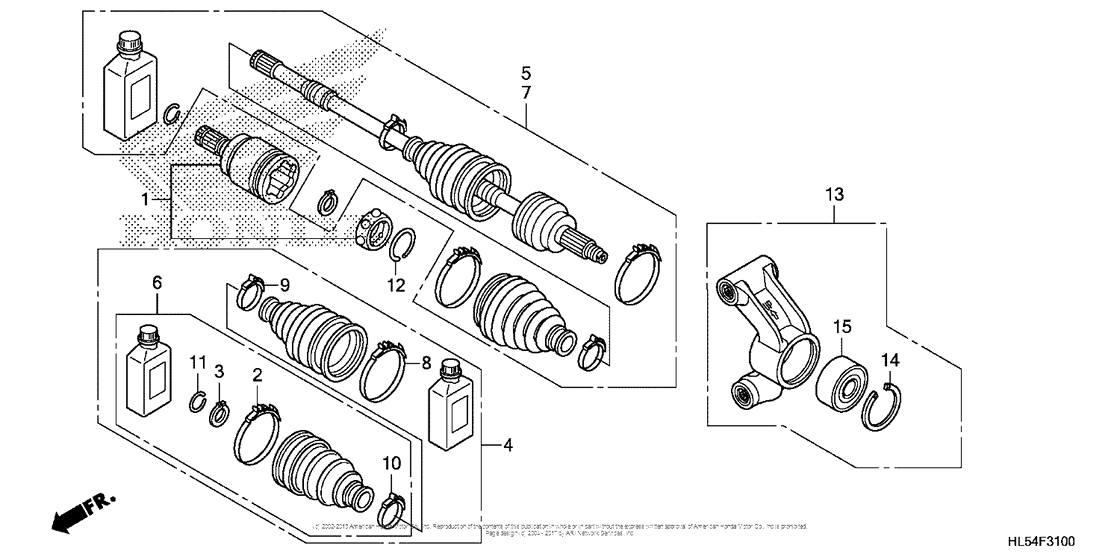

Rear Knuckle + Rear Driveshaft Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42220-HL3-A01 Joint, inboard |
42220-HL3-A01 |
US $179.81 |
||
|
2
|
2
42228-HL3-A01 Band, inboard boot |
42228-HL3-A01 |
US $6.85 |
||
|
3
|
3
42232-HP6-A00 Circlip |
42232-HP6-A00 |
from US $2.55 |
||
|
4
|
4
42240-HL3-A02 BOOT SET, RR. |
42240-HL3-A02 |
US $163.57 |
||
|
5
|
5
42250-HL5-A01 SHAFT SET, R. RR. |
42250-HL5-A01 |
US $344.96 |
||
|
6
|
6
42260-HL3-A01 Boot set, rr. |
42260-HL3-A01 |
US $126.87 |
||
|
7
|
7
42350-HL5-A01 SHAFT SET, L. RR. |
42350-HL5-A01 |
US $344.96 |
||
|
8
|
8
44225-HL3-A01 Band, outboard boot |
44225-HL3-A01 |
US $7.41 |
||
|
9
|
9
44226-HL3-A01 Band, shaft boot |
44226-HL3-A01 |
US $5.47 |
||
|
10
|
10
44227-HL3-A01 Band, shaft boot |
44227-HL3-A01 |
US $5.32 |
||
|
11
|
11
44319-SR1-003 Set ring26X1.8 (GKN) |
44319-SR1-003 |
US $4.49 |
||
|
12
|
12
44337-SN4-901 Ring, snap |
44337-SN4-901 |
from US $1.61 |
||
|
13
|
13
52200-HL3-A00 Knuckle assy., rr. |
52200-HL3-A00 |
US $695.39 |
||
|
14
|
14
90651-HL3-A00 Circlip (inner) (73) |
90651-HL3-A00 |
from US $4.29 |
||
|
15
|
15
91056-HL3-A01 Bearing (37x72x37) |
91056-HL3-A01 |
US $78.39 |
