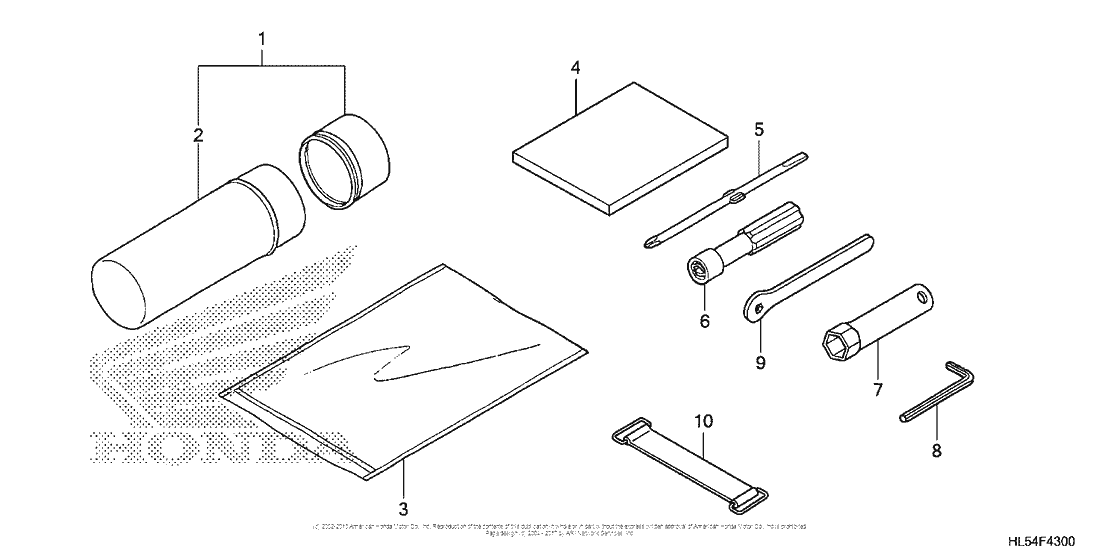

Tool Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-152-000 Box, tool |
83501-152-000 |
from US $13.02 |
||
|
2
|
2
83502-152-000 Body, tool box |
83502-152-000 |
from US $7.24 |
||
|
3
|
3
83642-HM5-A10 Bag, owner`s manual |
83642-HM5-A10 |
US $1.97 |
||
|
4
|
4
89015-HF1-670 Sponge, tool box |
89015-HF1-670 |
US $6.90 |
||
|
5
|
5
89102-538-000 Driver, SCREW(NO.2 + -) |
89102-538-000 |
from US $2.37 |
||
|
6
|
6
89103-538-000 Grip |
89103-538-000 |
US $6.78 |
||
|
7
|
7
89216-MBN-670 Wrench, plug |
89216-MBN-670 |
US $9.13 |
||
|
8
|
8
89221-429-000 Wrench, hex. (5mm) |
89221-429-000 |
from US $5.62 |
||
|
9
|
9
89227-HP5-600 Tool, gearshift |
89227-HP5-600 |
US $7.09 |
||
|
10
|
10
9501217001 Band f, battery |
9501217001 |
from US $4.74 |
