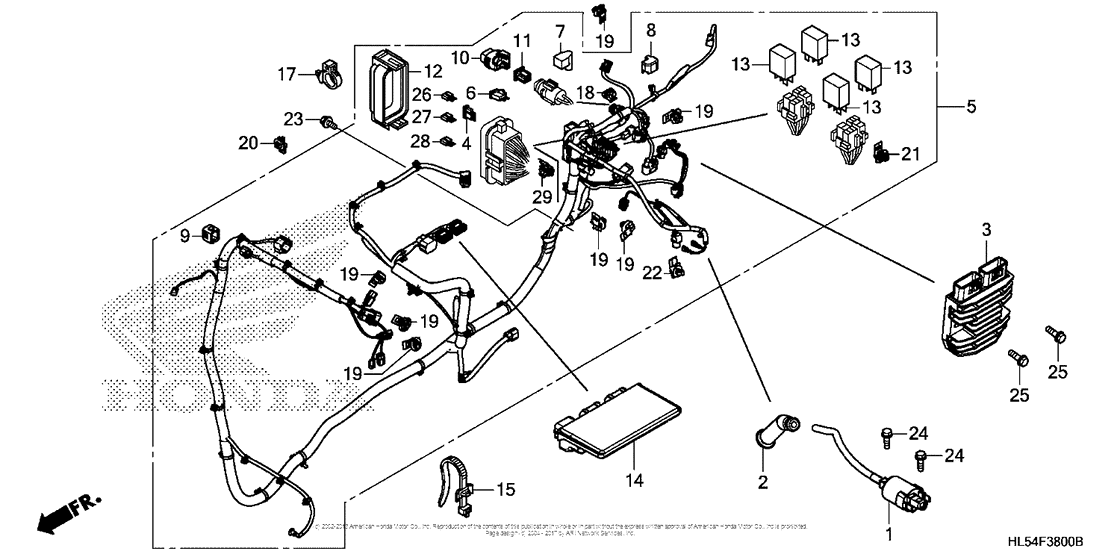

Wire Harness Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 2AC
- Engine Capacity
- 500
- Year
- 2016
- Sales region
- USA
- Frame
- 1HFVE032 - G4100001
- Model
- Pioneer 500 (Camo)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-HL5-A01 New Genuine Part |
30510-HL5-A01 |
from US $59.16 |
||
|
2
|
2
30700-MBN-671 Cap assy. |
30700-MBN-671 |
from US $24.34 |
||
|
3
|
3
31600-MGZ-J01 Rectifier, regulator |
31600-MGZ-J01 |
from US $222.72 |
||
|
4
|
4
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.54 |
||
|
5
|
5
32100-HL5-A00 WIRE HARNESS |
32100-HL5-A00 |
US $1,943.39 |
||
|
6
|
6
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
7
|
7
32405-MEC-000 Cover |
32405-MEC-000 |
US $10.66 |
||
|
8
|
8
32416-HN5-670 Cover |
32416-HN5-670 |
US $7.84 |
||
|
9
|
9
32606-GEV-761 Cap, dummy (4p) |
32606-GEV-761 |
from US $4.29 |
||
|
10
|
10
38205-HP0-B11 Cover, fuse (40a) |
38205-HP0-B11 |
from US $7.31 |
||
|
11
|
11
38211-SNA-A21 FuseBLOCK (40A) |
38211-SNA-A21 |
from US $3.08 |
||
|
12
|
12
38230-HL5-A00 COVER SET, FUSE |
38230-HL5-A00 |
US $4.28 |
||
|
13
|
13
38503-MCA-A61 Relay (micro iso 4p) |
38503-MCA-A61 |
from US $5.32 |
||
|
14
|
14
38770-HL5-A04 PGM-FI UNIT |
38770-HL5-A04 |
US $251.57 |
||
|
15
|
15
90649-SC2-003 BandWIRE HARNESS (NATURAL) (150MM) |
90649-SC2-003 |
from US $2.73 |
||
|
17
|
17
90652-HC4-003 ClampHARNESS |
90652-HC4-003 |
from US $2.03 |
||
|
18
|
18
91533-S04-003 ClipCOUPLER (NATURAL) |
91533-S04-003 |
from US $1.47 |
||
|
19
|
19
91535-STK-003 ClipCOUPLER (DARK BLUE) |
91535-STK-003 |
from US $2.73 |
||
|
20
|
20
91535-TF0-003 ClipCOUPLER (BROWN) |
91535-TF0-003 |
from US $1.61 |
||
|
21
|
21
91536-STK-003 ClipRELAY HOLDER(NATURAL) |
91536-STK-003 |
from US $0.97 |
||
|
22
|
22
91565-S3Y-003 ClipCOUPLER |
91565-S3Y-003 |
from US $1.61 |
||
|
23
|
23
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
24
|
24
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
25
|
25
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
26
|
26
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
||
|
27
|
27
98200-41500 FuseMINI(15A) |
98200-41500 |
from US $0.52 |
||
|
28
|
28
98200-43000 FuseMINI (30A) |
98200-43000 |
from US $0.74 |
