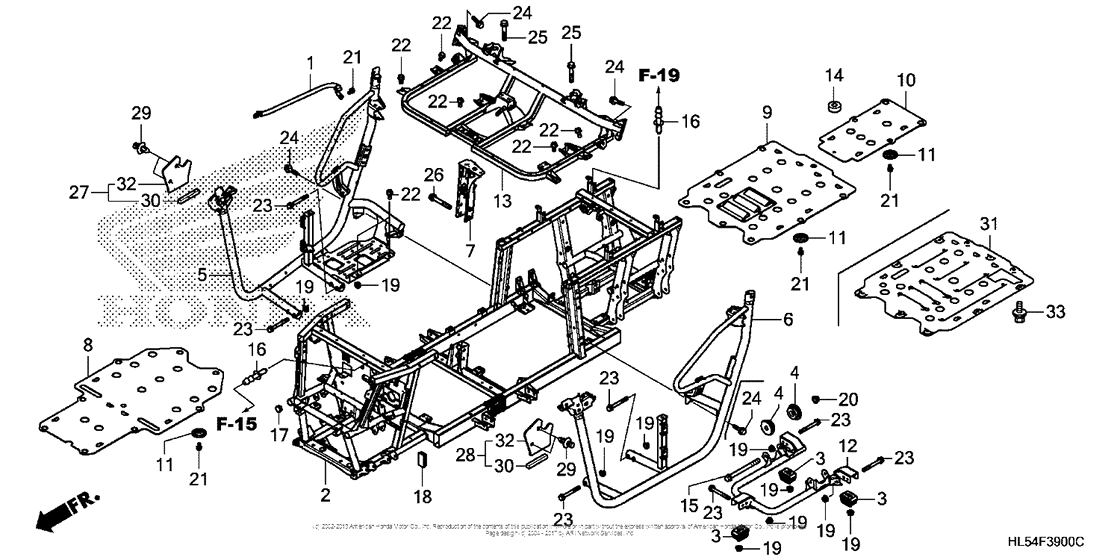

Frame Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE030 - H4200001
- Model
- Pioneer 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32603-HL3-A00 Cable, frame ground |
32603-HL3-A00 |
US $9.71 |
||
|
2
|
2
50000-HL5-A40 FRAME ASSY. |
50000-HL5-A40 |
US $1,931.51 |
||
|
3
|
3
50301-HL5-A01 RUB, ENGINE MOUNTING |
50301-HL5-A01 |
US $31.16 |
||
|
4
|
4
50304-HL5-A00 COLLAR, ENGINE MOUNT |
50304-HL5-A00 |
US $7.58 |
||
|
5
|
5
50310-HL5-A40 PIPE, R. STEP |
50310-HL5-A40 |
US $457.16 |
||
|
6
|
6
50320-HL5-A40 PIPE, L. STEP |
50320-HL5-A40 |
US $424.42 |
||
|
7
|
7
50330-HL5-A00 BRACKET, PARKING |
50330-HL5-A00 |
US $51.03 |
||
|
8
|
8
50400-HL5-A00 PLATE, FR. SKID |
50400-HL5-A00 |
US $84.08 |
||
|
10
|
10
50402-HL5-A00 PLATE, RR. SKID |
50402-HL5-A00 |
US $29.68 |
||
|
11
|
11
50403-HL3-A00 Washer, skid plate |
50403-HL3-A00 |
US $3.15 |
||
|
12
|
12
50500-HL5-A00 FRAME, ENGINE |
50500-HL5-A00 |
US $96.53 |
||
|
13
|
13
50600-HL5-A41 FRAME, SEAT |
50600-HL5-A41 |
US $375.39 |
||
|
14
|
14
50605-GZ4-670 Collar |
50605-GZ4-670 |
from US $2.15 |
||
|
15
|
15
90057-671-000 BoltALTERNATOR |
90057-671-000 |
from US $6.51 |
||
|
16
|
16
90652-HF7-003 Joint, breather tube |
90652-HF7-003 |
from US $4.74 |
||
|
17
|
17
90860-HL5-A00 CAP (1-1/4") |
90860-HL5-A00 |
US $1.58 |
||
|
18
|
18
90883-HL3-A00 Cap, pipe end |
90883-HL3-A00 |
US $2.50 |
||
|
19
|
19
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
20
|
20
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
21
|
21
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
22
|
22
95701-0801600 Bolt, flange, 8x16 |
95701-0801600 |
from US $0.59 |
||
|
23
|
23
95701-0806500 Bolt, flange, 8x65 |
95701-0806500 |
from US $0.89 |
||
|
24
|
24
95701-100-200-0 BoltFLANGE, 10X20 |
95701-100-200-0 |
from US $0.74 |
||
|
25
|
25
95701-100-500-0 BoltFLANGE, 10X50 |
95701-100-500-0 |
from US $0.93 |
||
|
26
|
26
95701-1006500 Bolt, flange, 10x65 |
95701-1006500 |
from US $1.18 |
||
|
29
|
29
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $3.11 |
||
|
31
|
31
50401-HL5-A41 PLATE, MIDDLE SKID |
50401-HL5-A41 |
US $151.67 |
||
|
32
|
32
61180-HL5-A40 PLATE |
61180-HL5-A40 |
US $2.33 |
||
|
33
|
33
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
