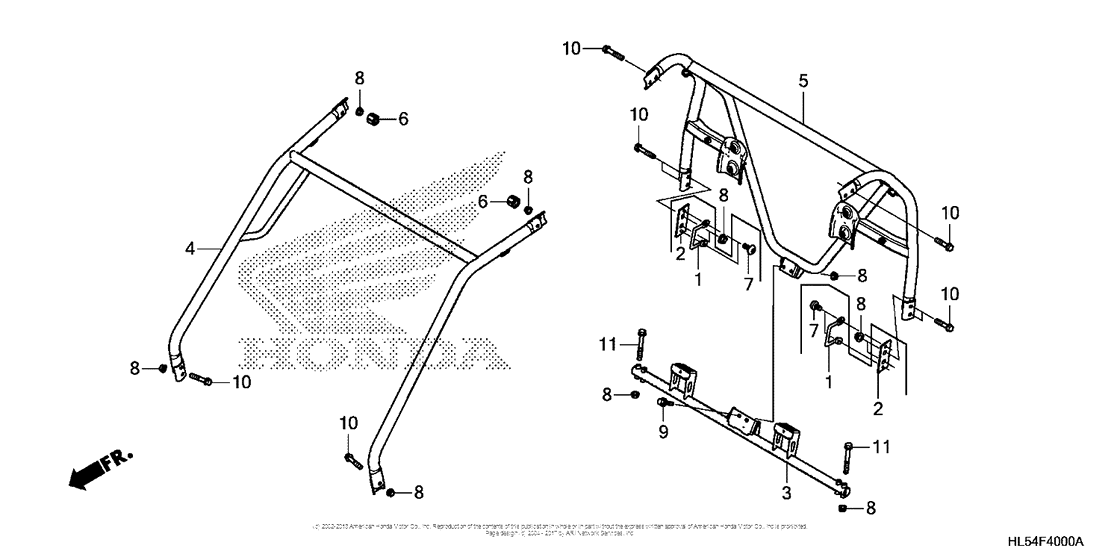

Roll Bar Diagram Honda SXS 500 Pioneer 500
- Model code
- SXS500M2 AC
- Engine Capacity
- 500
- Year
- 2017
- Sales region
- USA
- Frame
- 1HFVE030 - H4200001
- Model
- Pioneer 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
71940-HL5-A00 PIPE, ROLL BAR CROSS |
71940-HL5-A00 |
US $310.69 |
||
|
4
|
4
71950-HL5-A00 PIPE, FR. ROLL BAR |
71950-HL5-A00 |
US $373.46 |
||
|
5
|
5
71960-HL5-A00 PIPE, RR. ROLL |
71960-HL5-A00 |
US $498.68 |
||
|
6
|
6
71980-HL1-A00 Cap, roll bar nut |
71980-HL1-A00 |
US $3.49 |
||
|
8
|
8
90303-428-900 Nut, flange (10mm) |
90303-428-900 |
from US $1.89 |
||
|
9
|
9
95701-1002007 Bolt, flange, 10x20 |
95701-1002007 |
from US $0.74 |
||
|
10
|
10
95701-100-550-7 Bolt, flange (10x55) |
95701-100-550-7 |
from US $0.89 |
||
|
11
|
11
95701-1007507 Bolt, flange (10x75) |
95701-1007507 |
from US $1.18 |
