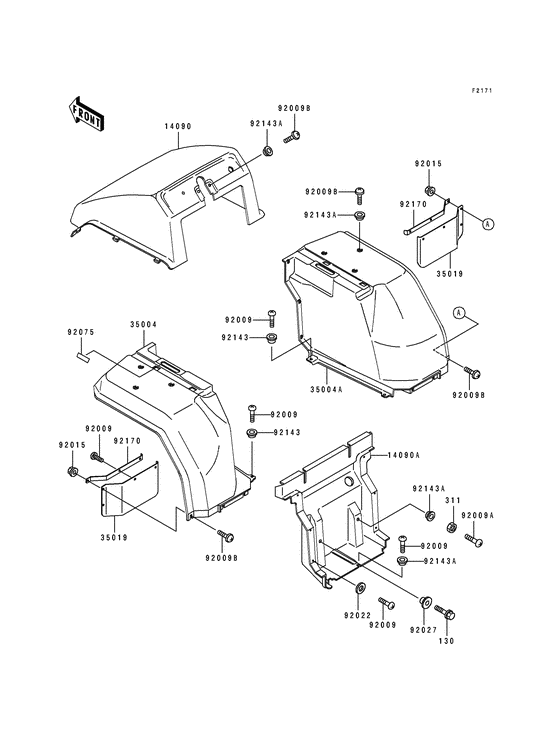

Front fender Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14090
|
14090
14024-1983-6L COVER-UPPER,F.REDCover,upp,f.red; |
14024-1983-6L |
US $280.57 |
||
| replacement | |||||
|
14090
|
14090
14090-1646-6L COVER-UPPER,F.REDCover,upp,f.red; |
14090-1646-6L |
US $280.57 |
||
|
14090A
|
14090A
14024-1984 COVER FRCover,fr; |
14024-1984 |
US $238.75 |
||
|
35004
|
35004
35004-1276-6L FENDER FRONT,LH,F.REDFender-front,lh,f.red; |
35004-1276-6L |
US $426.53 |
||
|
35004A
|
35004A
35004-1277-6L FENDER FRONT,RH,F.REDFender-front,rh,f.red; |
35004-1277-6L |
US $426.53 |
||
|
35019
|
35019
35019-1271 FLAP,FRONT FENDERFlap,front fender; |
35019-1271 |
US $24.48 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1589 SCREW,6X35Screw,6x35; |
92009-1589 |
from US $2.79 |
||
|
92009B
|
92009B
92009-1621
SCREW
Screw,6x16; |
92009-1621 |
— | ||
| replacement | |||||
|
92009B
|
92009B
92009-1694 SCREWScrew,6x16; |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLAWasher,6.5x20x1.6,black; |
92022-1346 |
from US $0.82 |
||
|
92027
|
92027
92027-1450 COLLAR,L=13.1,BLACKCollar,l=13.1,black; |
92027-1450 |
from US $3.64 |
||
|
92075
|
92075
92075-1867 DAMPER |
92075-1867 |
from US $3.48 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLARCollar,l=5; |
92143-1087 |
from US $2.85 |
||
|
92170
|
92170
92170-1212 CLAMP,FLAPClamp,flap; |
92170-1212 |
US $8.12 |
||
| replacement | |||||
|
92170
|
92170
92170-1371 CLAMP,FLAPClamp,flap; |
92170-1371 |
US $8.12 |
||
|
130
|
130
130J0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130J0625 |
— | ||
| replacement | |||||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BB0625 |
from US $1.61 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.63 |
||
