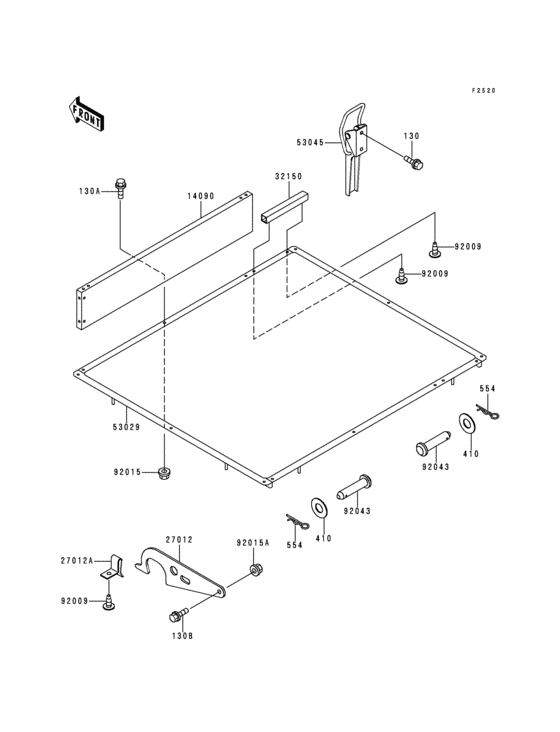

Carrier Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
|
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
130B
|
130B
130J0640
BOLT-FLANGED
|
130J0640 |
— | ||
| replacement | |||||
|
130B
|
130B
130CB0640 BOLT-FLANGED |
130CB0640 |
from US $1.40 |
||
|
410
|
410
410B1200 WASHER PLAIN 12MM |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
410
|
410
410AA1200 WASHER-PLAIN-SMALL,12 |
410AA1200 |
from US $0.95 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/M |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/M |
554DA1200 |
from US $2.17 |
||
|
14090
|
14090
14024-1980-B1 COVER CARRIER F.RED |
14024-1980-B1 |
US $197.68 |
||
|
27012
|
27012
27012-1444 HOOK CARRIER |
27012-1444 |
US $13.68 |
||
|
27012A
|
27012A
27012-1445 HOOK,CARRIER |
27012-1445 |
from US $8.24 |
||
|
32150
|
32150
32150-1711-B1 PIPE CARRIER,F.RED |
32150-1711-B1 |
US $9.23 |
||
|
53029
|
53029
53029-1129-B1 CARRIER F.RED |
53029-1129-B1 |
US $1,228.19 |
||
|
53045
|
53045
53045-1058 HOOK-ASSY |
53045-1058 |
US $20.18 |
||
| replacement | |||||
|
53045
|
53045
53045-1063 HOOK-ASSY |
53045-1063 |
from US $16.65 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MM |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92043
|
92043
92043-1451 PIN,12X54 |
92043-1451 |
from US $5.90 |
||
