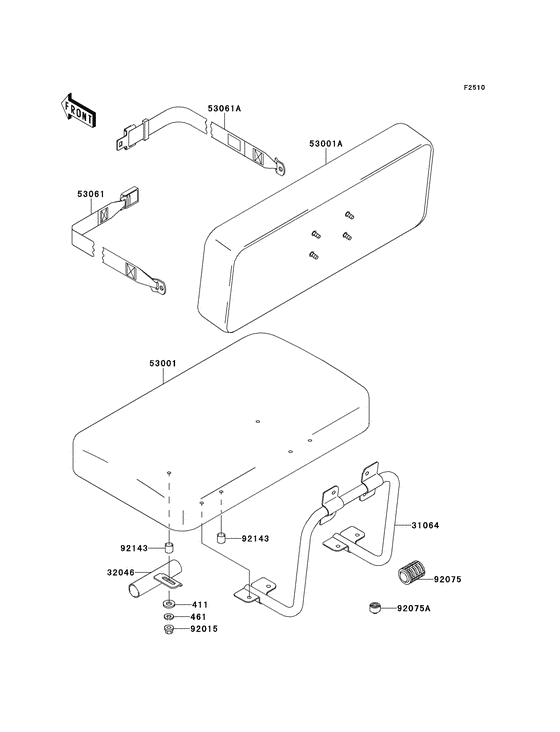

Seat Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-B1
- Engine Capacity
- 300
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer-plain,8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher-plain,8mm; |
411AA0800 |
from US $0.72 |
||
|
461
|
461
461F0800
WASHER-SPRING,8MM
Washer-spring,8mm; |
461F0800 |
— | ||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MMWasher-spring,8mm; |
461DA0800 |
from US $0.48 |
||
|
31064
|
31064
31064-1150 PIPE-COMP, SEATPipe-comp,seat; |
31064-1150 |
US $60.19 |
||
|
32046
|
32046
32046-1376 BRACKET, SEAT |
32046-1376 |
US $17.73 |
||
|
53001
|
53001
53001-1717-PA SEAT-ASSY. CUSHIONSeat-assy,cushion,gray; |
53001-1717-PA |
US $502.13 |
||
|
53001A
|
53001A
53001-1718-PA SEAT-ASSY., BACKSeat-assy,back,gray; |
53001-1718-PA |
US $328.07 |
||
|
53061
|
53061
53061-1010 BELT-SEAT,BUCKLEBelt-seat,buckle; |
53061-1010 |
US $73.89 |
||
|
53061A
|
53061A
53061-1011 BELT-SEAT,LATCH PLATEBelt-seat,latch plate; |
53061-1011 |
US $77.60 |
||
|
92015
|
92015
92015-1696 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92015-1696 |
from US $3.17 |
||
| replacement | |||||
|
92015
|
92015
92210-0005 NUT,FLANGED,LOCK,8MMNut,flanged,lock,8mm; |
92210-0005 |
from US $2.30 |
||
|
92075
|
92075
92075-084 DAMPER RUBBERDamper,fuel tank; |
92075-084 |
from US $5.28 |
||
|
92075A
|
92075A
92075-1045 DAMPER,STAND STOPPER |
92075-1045 |
from US $5.70 |
||
|
92143
|
92143
92143-1340 COLLAR,8.8X12X11.5Collar,8.8x12x11.5; |
92143-1340 |
from US $3.01 |
||
