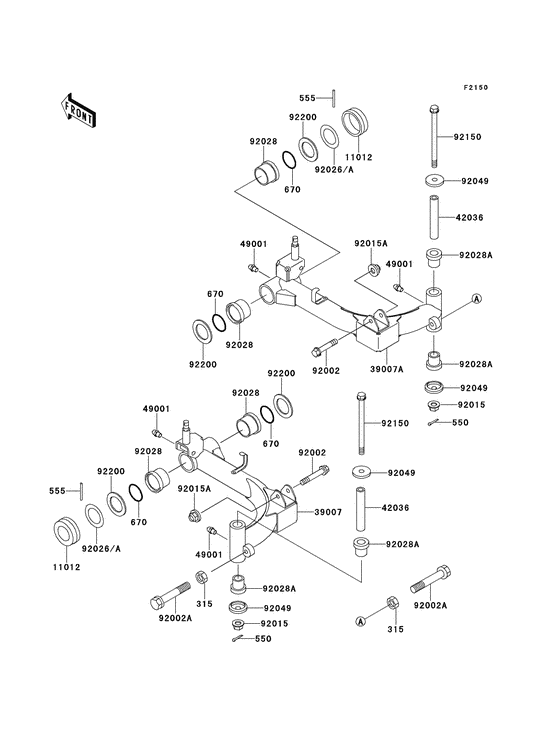

Suspension Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-B1
- Engine Capacity
- 300
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
315
|
315
315J1000
NUT-HEX-FINE
|
315J1000 |
— | ||
| replacement | |||||
|
315
|
315
315BB1000 NUT-HEX-FINE |
315BB1000 |
from US $1.09 |
||
|
550
|
550
550D2022 PIN-COTTER,2.0X22Pin-cotter,2.0x22; |
550D2022 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA2022 PIN-COTTER,2.0X22Pin-cotter,2.0x22; |
550AA2022 |
from US $0.94 |
||
|
555
|
555
555A0656
PIN-SPRING,6X56
Pin-spring,6x56; |
555A0656 |
— | ||
|
670
|
670
670B3042 O RING,42MMO ring,42mm; |
670B3042 |
US $30.56 |
||
|
11012
|
11012
11012-1763 CAP |
11012-1763 |
US $9.05 |
||
|
39007
|
39007
39007-1198 ARM SUSP,LHArm-susp,lh; |
39007-1198 |
US $263.70 |
||
|
39007A
|
39007A
39007-1199 ARM SUSP,RHArm-susp,rh; |
39007-1199 |
US $263.70 |
||
|
42036
|
42036
42036-1277
SLEEVE,12X20X120
Sleeve,12x20x120.6; |
42036-1277 |
— | ||
|
49001
|
49001
49001-1051
NIPPLE-GREASE
|
49001-1051 |
— | ||
| replacement | |||||
|
49001
|
49001
49001-0001 NIPPLE-GREASE |
49001-0001 |
from US $2.06 |
||
|
92002
|
92002
92002-1529 BOLT,FLANGED,10X53.5Bolt,flanged,10x53.5; |
92002-1529 |
from US $5.70 |
||
|
92002A
|
92002A
92002-1559 BOLT,8X30Bolt,10x30; |
92002-1559 |
from US $6.38 |
||
|
92015
|
92015
92015-1433 NUT,12MMNut,flanged,12mm; |
92015-1433 |
from US $5.54 |
||
|
92015A
|
92015A
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $7.04 |
||
|
92026
|
92026
92026-1405 SPACER,42.5X64X1Spacer,42.5x64x1; |
92026-1405 |
US $6.21 |
||
|
92026A
|
92026A
92026-1407 SPACER,42.5X64X0.5Spacer,42.5x64x0.5; |
92026-1407 |
US $4.99 |
||
|
92028
|
92028
92028-1619 BUSHING |
92028-1619 |
US $22.86 |
||
|
92028A
|
92028A
92028-1723 BUSHING |
92028-1723 |
US $20.12 |
||
|
92049
|
92049
92049-1371 SEAL-OIL |
92049-1371 |
from US $7 |
||
|
92150
|
92150
92150-1437 BOLT,FLANGED,12X170Bolt,flanged,12x170; |
92150-1437 |
from US $17.42 |
||
|
92200
|
92200
92200-1069 WASHER,42.5X64X3.2Washer,42.5x64x3.2; |
92200-1069 |
US $4.45 |
||
