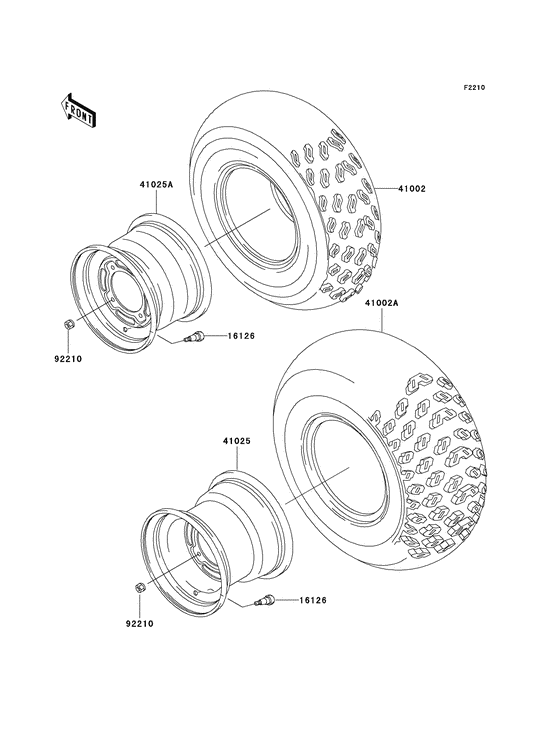

Wheels/tires Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C6
- Engine Capacity
- 286
- Year
- 2003
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-1838 TIRE,FR,22X9.00-10,DITire,fr,22x9.00-10,kt761a(d); |
41002-1838 |
US $287.71 |
||
| replacement | |||||
|
41002
|
41002
41009-0516 TIRE,FR,22X9.00-10,DITire,fr,22x9.00-10,kt761a(d); |
41009-0516 |
US $287.71 |
||
|
41002A
|
41002A
41002-1839 TIRE,RR,22X11.00-10,DTire,rr,22x11.00-10,kt765a(d); |
41002-1839 |
US $296.64 |
||
| replacement | |||||
|
41002A
|
41002A
41009-0517 TIRE,RR,22X11.00-10,DTire,rr,22x11.00-10,kt765a(d); |
41009-0517 |
US $314.50 |
||
|
41025
|
41025
41025-1337-5A RIM,RR,10X8.5,F.SILVERim,rr,10x8.5,f.silver; |
41025-1337-5A |
from US $158.63 |
||
|
41025A
|
41025A
41025-1338-5A RIM,FR,10X7.0,F.SILVERim,fr,10x7.0,f.silver; |
41025-1338-5A |
from US $158.63 |
||
|
92210
|
92210
92210-1204 NUT,LOCK,10MMNut,lock,10mm; |
92210-1204 |
from US $5.59 |
||
