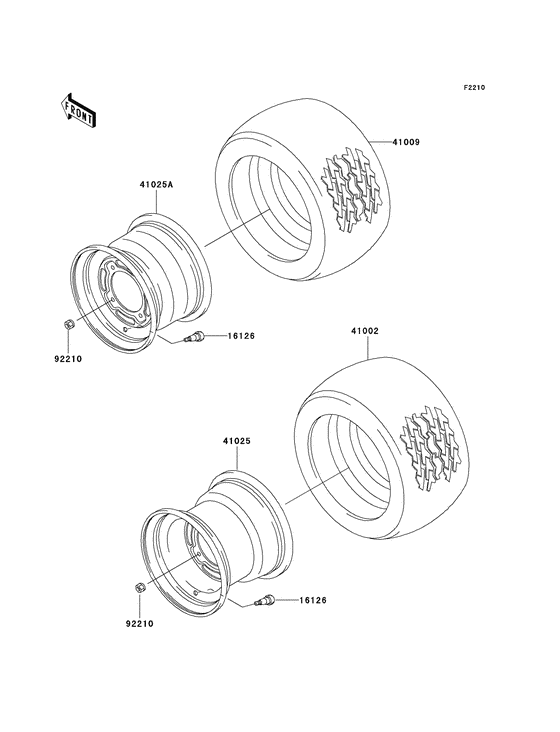

Wheels/tires Diagram Kawasaki KAF300 Mule 520
- Model code
- KAF300-D1
- Engine Capacity
- 286
- Year
- 2000
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 520
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-1756
Tire,20x10.00-10nhs(g
Tire,20x10.00-10nhs(goodyear); |
41002-1756 |
— | ||
| replacement | |||||
|
41002
|
41002
41009-014-0A
TURF / HARD SFC TIRE
Tire,20x10.00-10nhs(goodyear); |
41009-014-0A |
— | ||
|
41009
|
41009
41009-1265 TIRE-FR,20.5X10GDYRTire,fr,20.5x8-10(goodyear); |
41009-1265 |
US $137.27 |
||
|
41025
|
41025
41025-1337-5A RIM,RR,10X8.5,F.SILVERim,rr,10x8.5,f.silver; |
41025-1337-5A |
from US $158.63 |
||
|
41025A
|
41025A
41025-1338-5A RIM,FR,10X7.0,F.SILVERim,fr,10x7.0,f.silver; |
41025-1338-5A |
from US $158.63 |
||
|
92210
|
92210
92210-1204 NUT,LOCK,10MMNut,lock,10mm; |
92210-1204 |
from US $5.59 |
||
