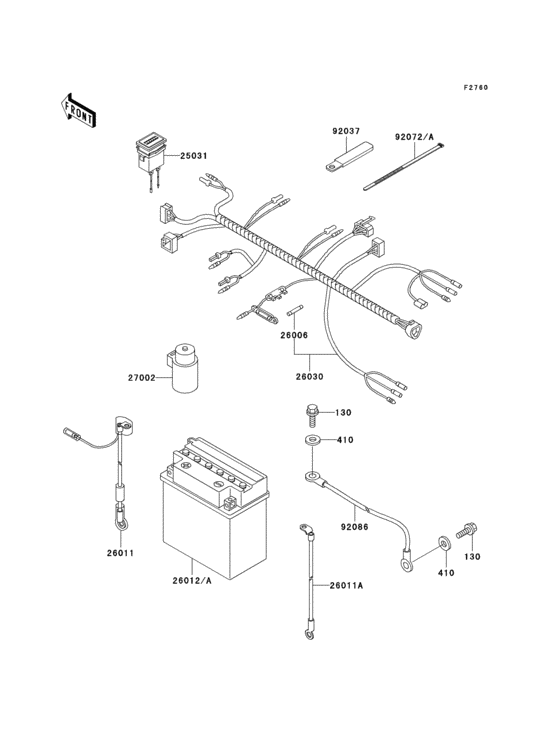

Chassis electrical equipment Diagram Kawasaki KAF300 Mule 520
- Model code
- KAF300-D2
- Engine Capacity
- 286
- Year
- 2001
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 520
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130
|
130
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $1.24 |
||
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8M |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
25031
|
25031
25031-1013 METER-ASSY,HOUR |
25031-1013 |
US $88.51 |
||
| replacement | |||||
|
25031
|
25031
26011-7511 WIRE-LEAD |
26011-7511 |
from US $12.22 |
||
|
26006
|
26006
26006-1056 FUSE,GLASS TUBE,6.4X3 |
26006-1056 |
US $3.64 |
||
|
26011
|
26011
26011-1486 WIRE LEAD,BATTERY (+) |
26011-1486 |
from US $12.20 |
||
|
26011A
|
26011A
26011-1494 WIRE LEAD,BATTERY (-) |
26011-1494 |
from US $18.82 |
||
|
26012A
|
26012A
26012-1397 YB14A-A2,12V 14AH |
26012-1397 |
US $80.98 |
||
| replacement | |||||
|
26012A
|
26012A
26012-1146
YB14A-A2,12V 14AH
|
26012-1146 |
— | ||
|
26030
|
26030
26030-1469 HARNESS |
26030-1469 |
from US $301.10 |
||
|
27002
|
27002
27002-1051 RELAY-ASSY |
27002-1051 |
from US $40.09 |
||
|
92037
|
92037
92037-113 CLAMP,HARNESS |
92037-113 |
from US $3.96 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92086
|
92086
92086-1054 WIRE |
92086-1054 |
from US $15.09 |
||
